J2253+1608

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

3C 454.3 22 h 53 m 57.7479 s + 16 ° 8 ´ 53.563 " 16.0 Jy quasar 0.859

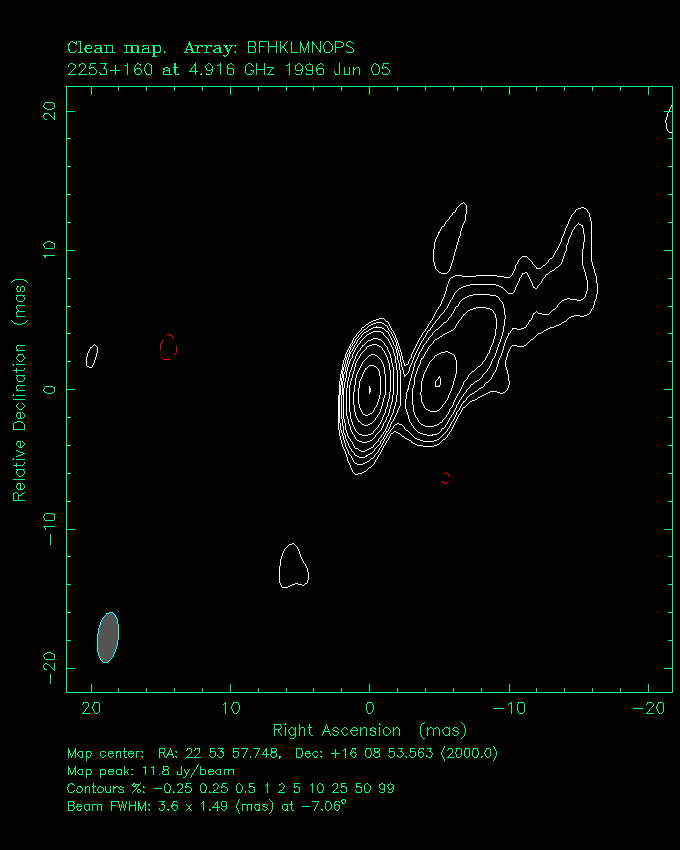

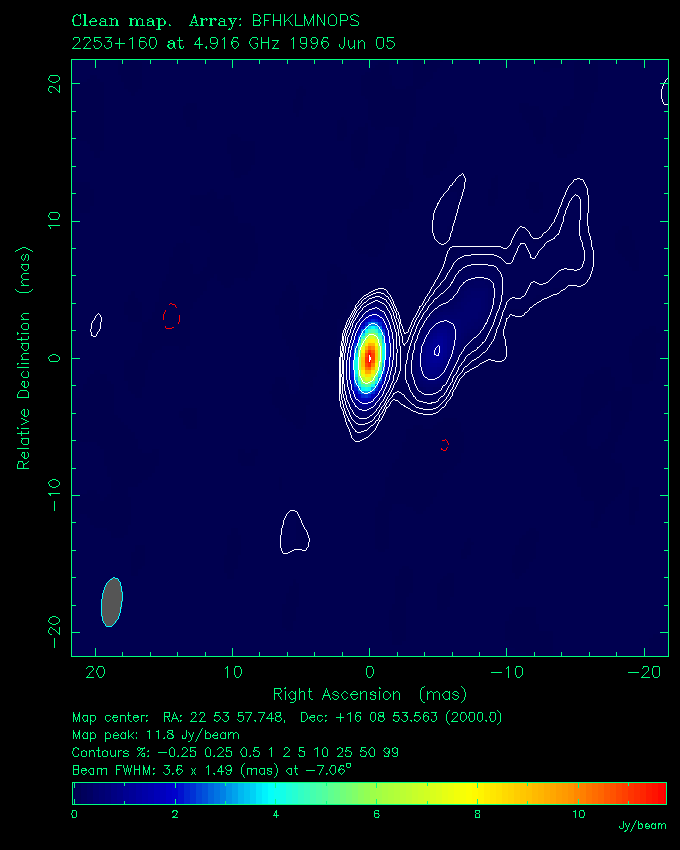

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

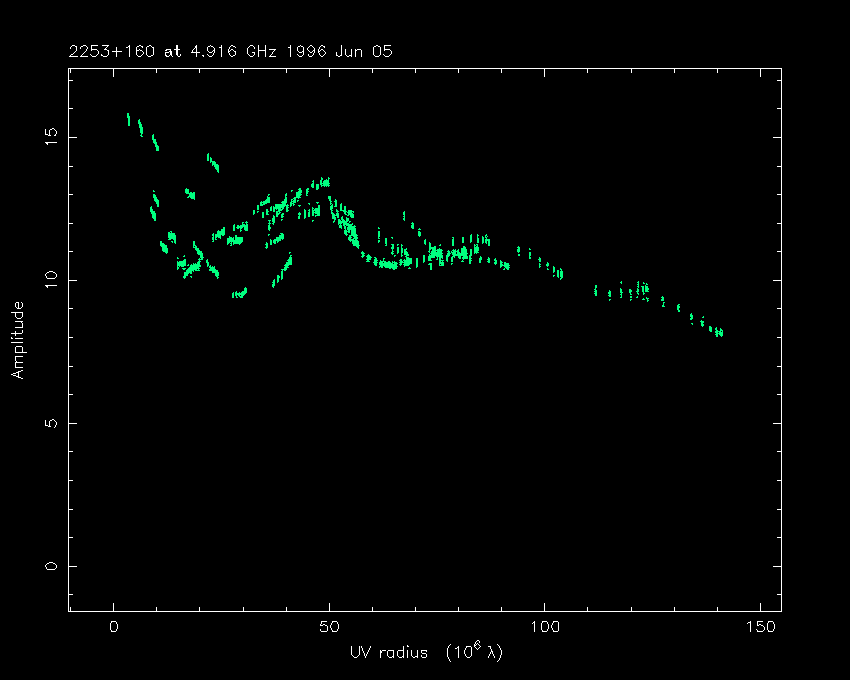

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

12.310 0.0 0.0 0.5 ± 0.1 < 0.1 95
0.159 -2.2 -1.6 3.9 ± 0.6 < 1.3 47
1.692 -4.9 0.3 2.0 ± 0.1 0.9 ± 0.1 127
1.445 -7.3 3.6 5.0 ± 0.2 2.2 ± 0.3 111
0.306 -12.1 8.0 7.5 ± 0.8 2.6 ± 0.6 122

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001
