J2232+1143

J2232+1143

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
CTA 102 22 h 32 m 36.4088 s + 11 ° 43 ´ 50.904 " 4.4 Jy quasar 1.037

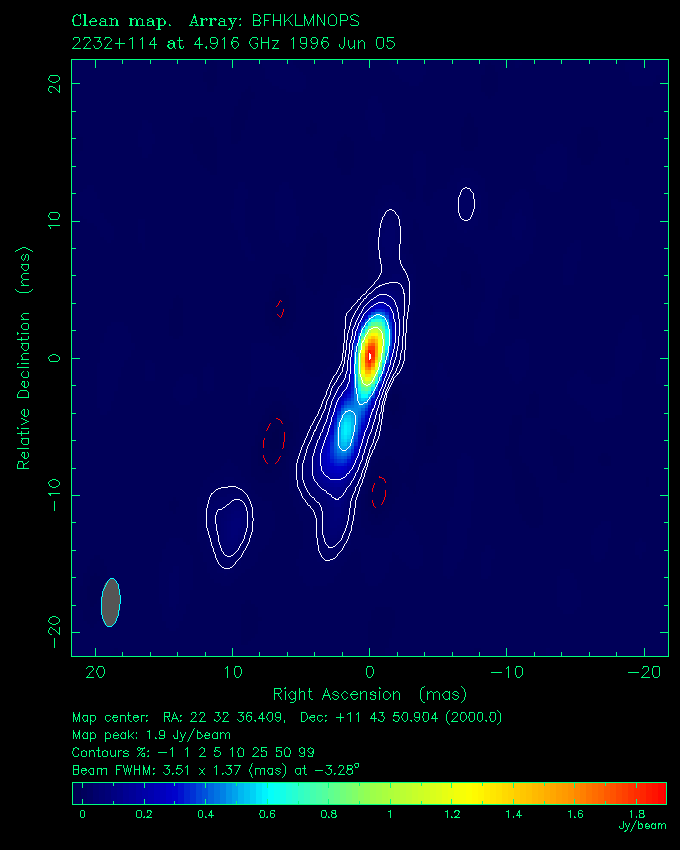

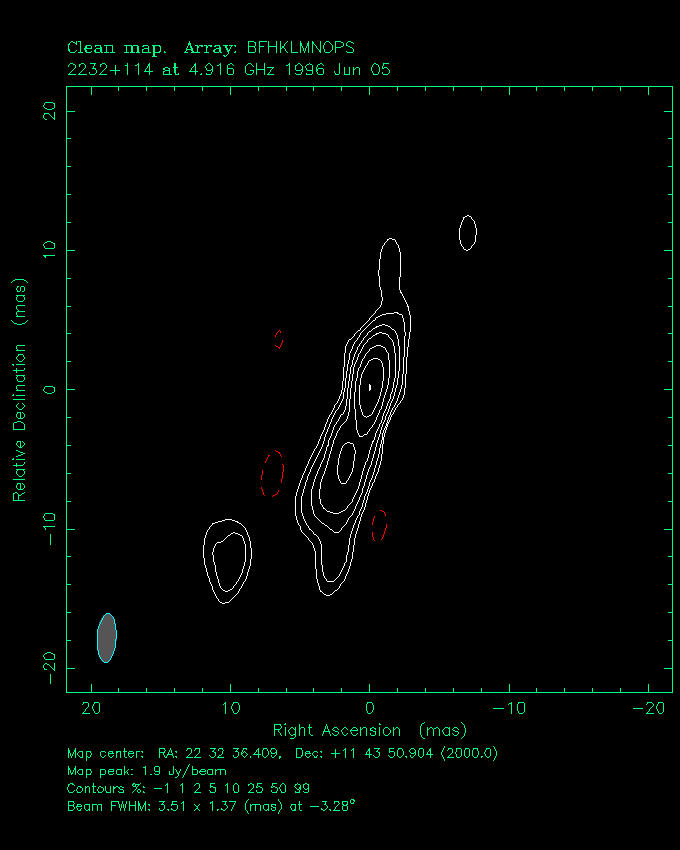

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

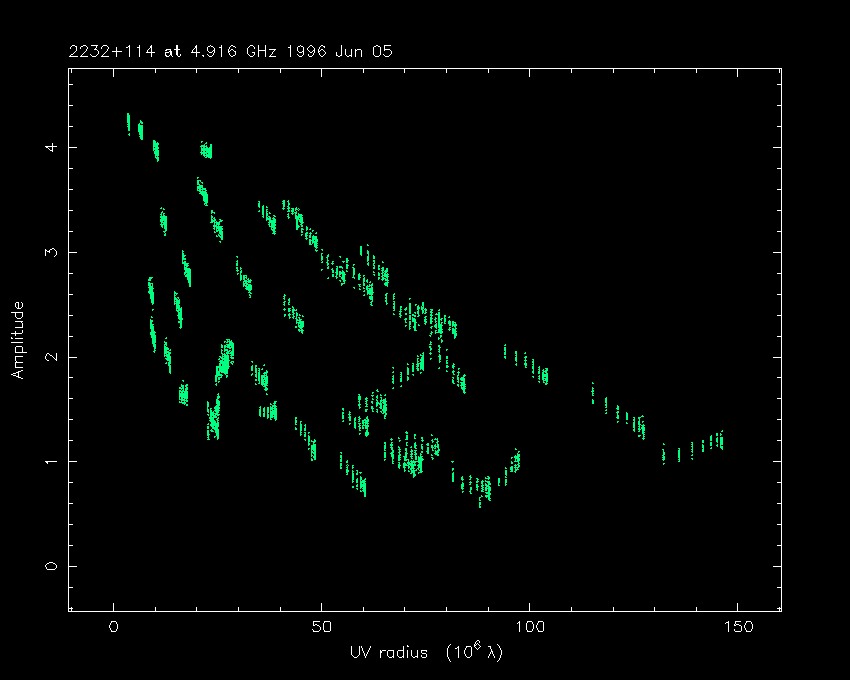

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
1.938 0.1 0.1 1.4 ± 0.1 0.5 ± 0.1 172
0.613 -0.9 1.6 < 0.8 < 0.4 ...
1.427 1.7 -5.4 4.3 ± 0.2 1.5 ± 0.1 156
0.434 7.5 -11.6 12.5 ± 1.3 3.0 ± 0.7 97

Other VLBI references
