J2203+3145

J2203+3145

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
2201+315 22 h 3 m 14.9757 s + 31 ° 45 ´ 38.269 " 2.9 Jy quasar 0.298

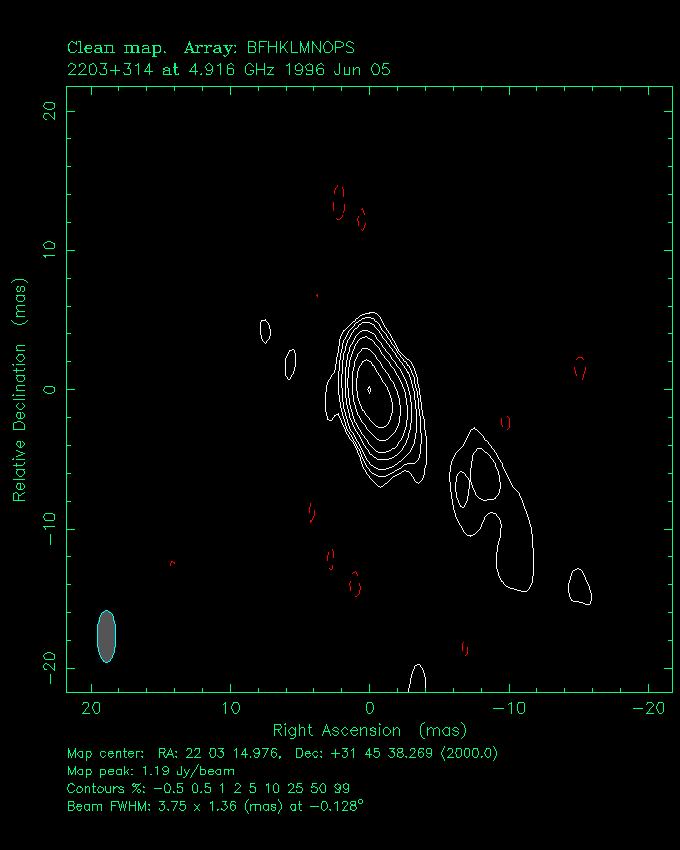

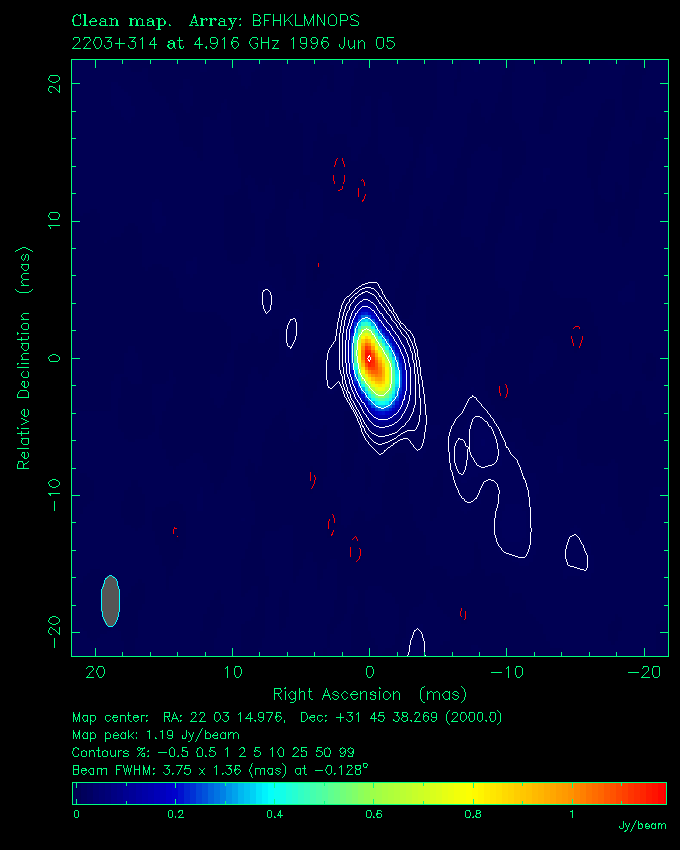

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

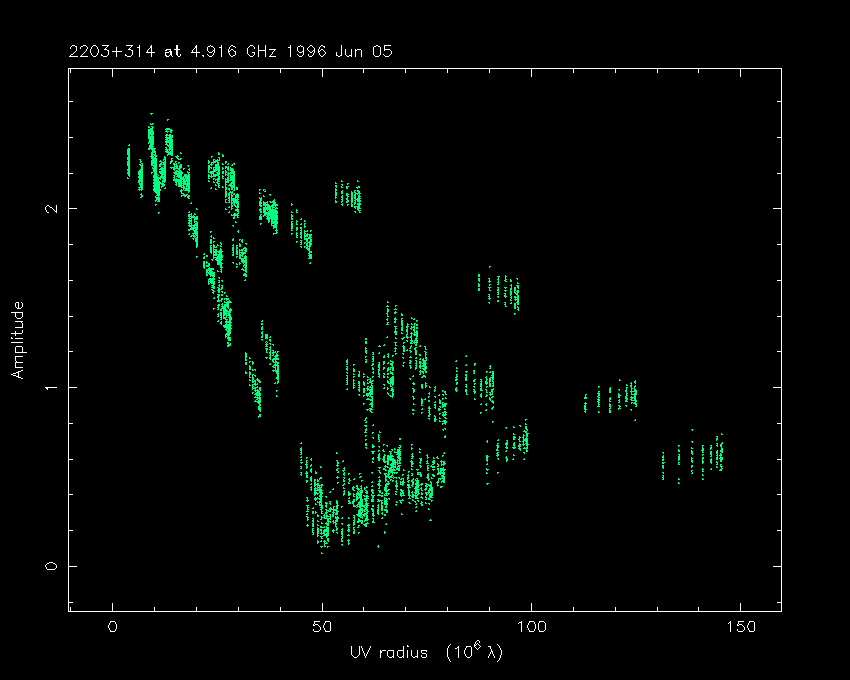

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
0.789 0.4 0.6 < 0.7 < 0.3 ...
1.462 -0.8 -1.1 1.9 ± 0.1 0.6 ± 0.2 51
0.054 -2.4 -1.4 2.0 ± 0.8 < 0.9 24

Other VLBI references
