J2152+1734

J2152+1734

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
2150+173 21 h 52 m 24.8193 s + 17 ° 34 ´ 37.795 " 0.7 Jy BL Lac ...

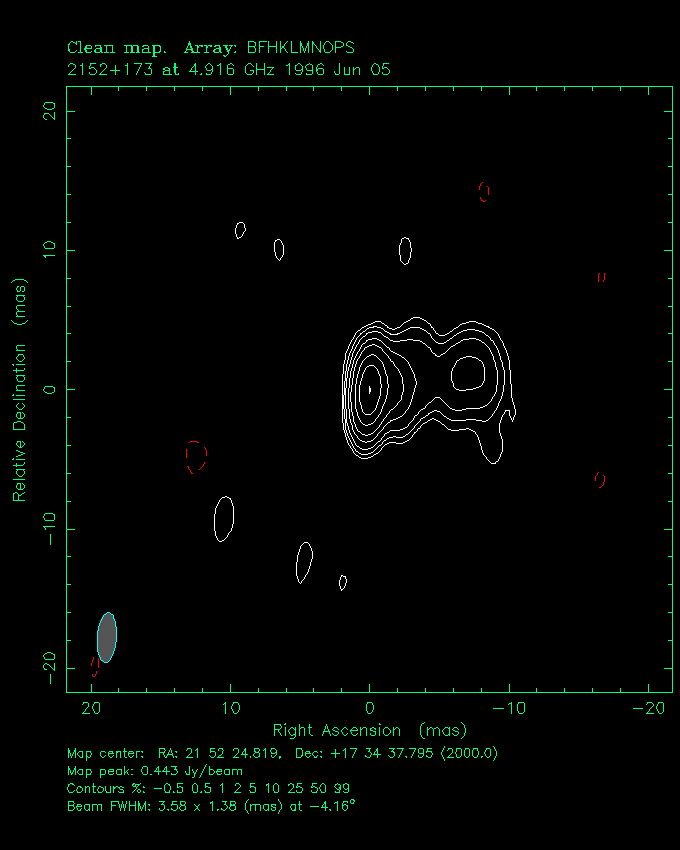

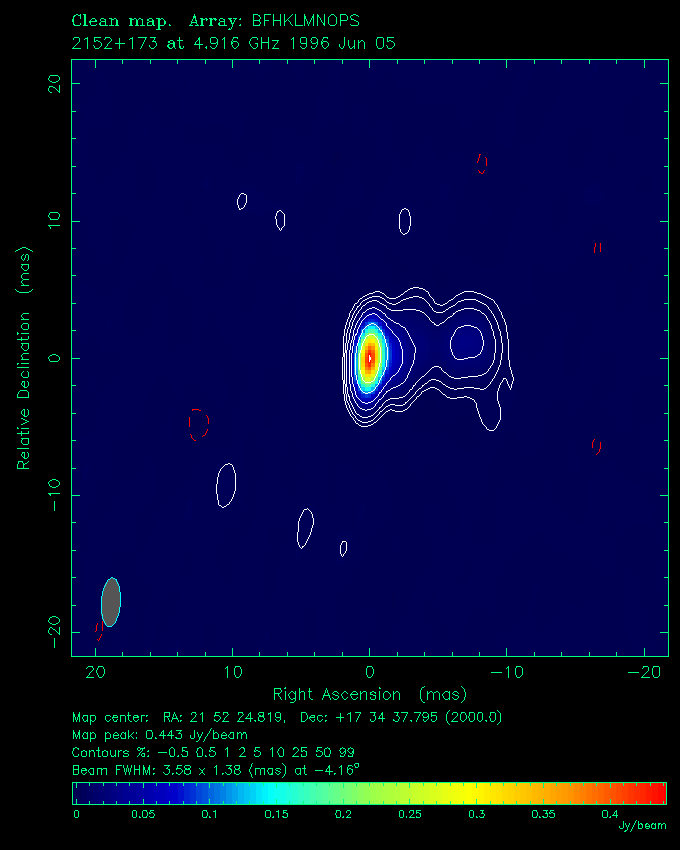

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

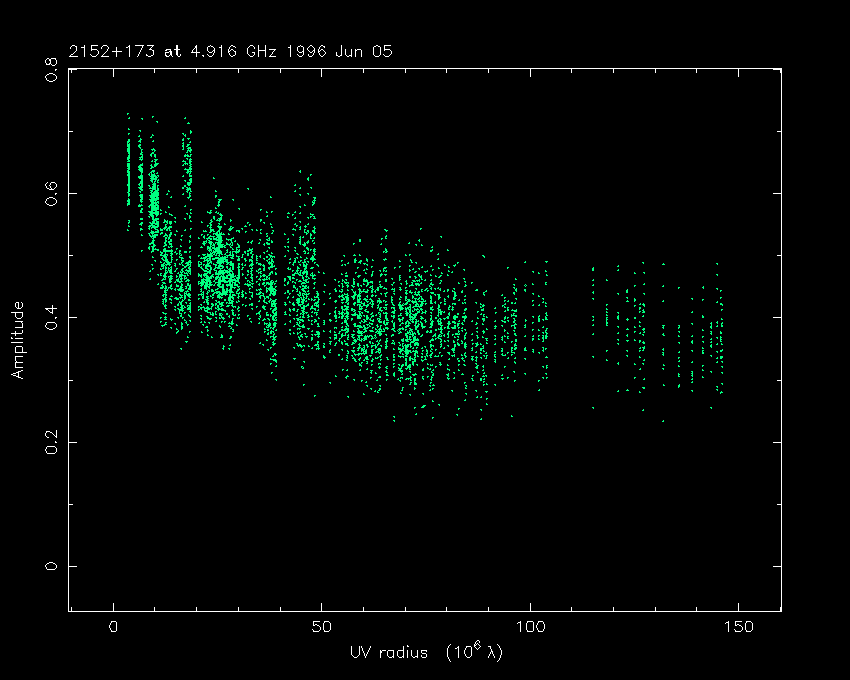

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
0.395 0.1 -0.1 < 1.1 < 0.5 ...
0.156 -1.1 0.2 2.3 ± 0.3 < 0.8 84
0.098 -6.6 1.0 4.2 ± 0.5 < 1.0 88

Other VLBI references
