J2115+2933

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

2113+293 21 h 15 m 29.4134 s + 29 ° 33 ´ 38.366 " 1.2 Jy quasar 1.514

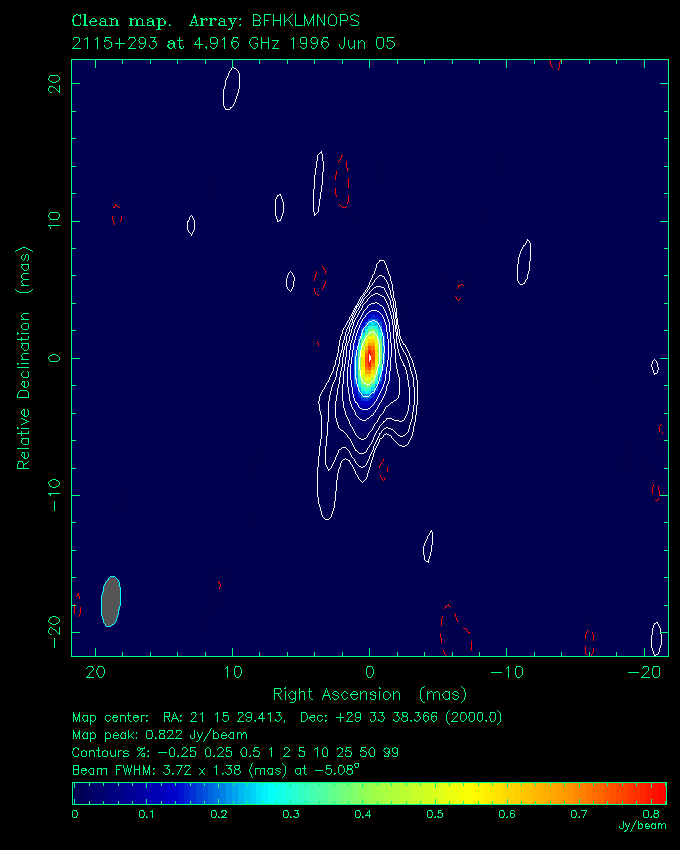

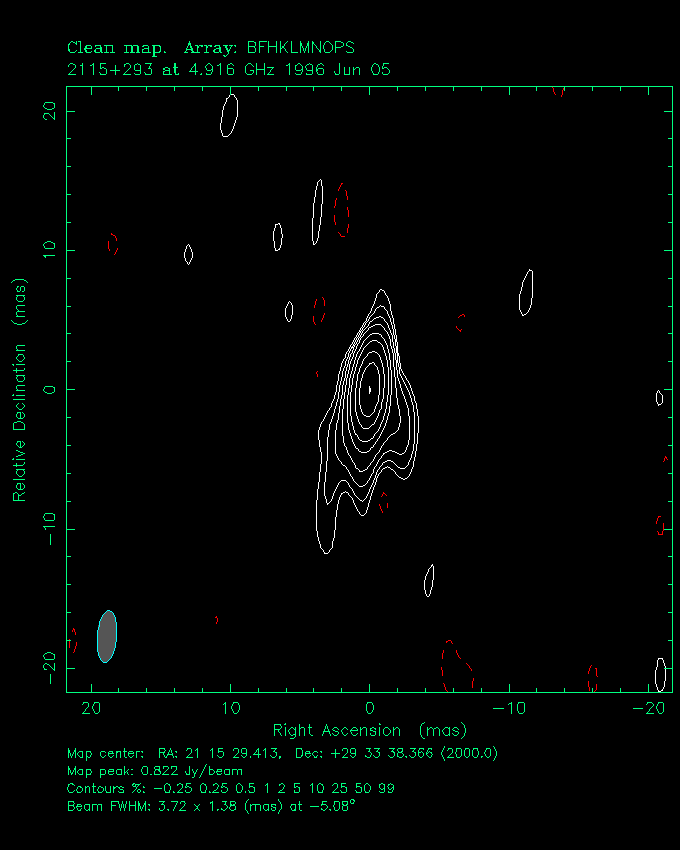

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

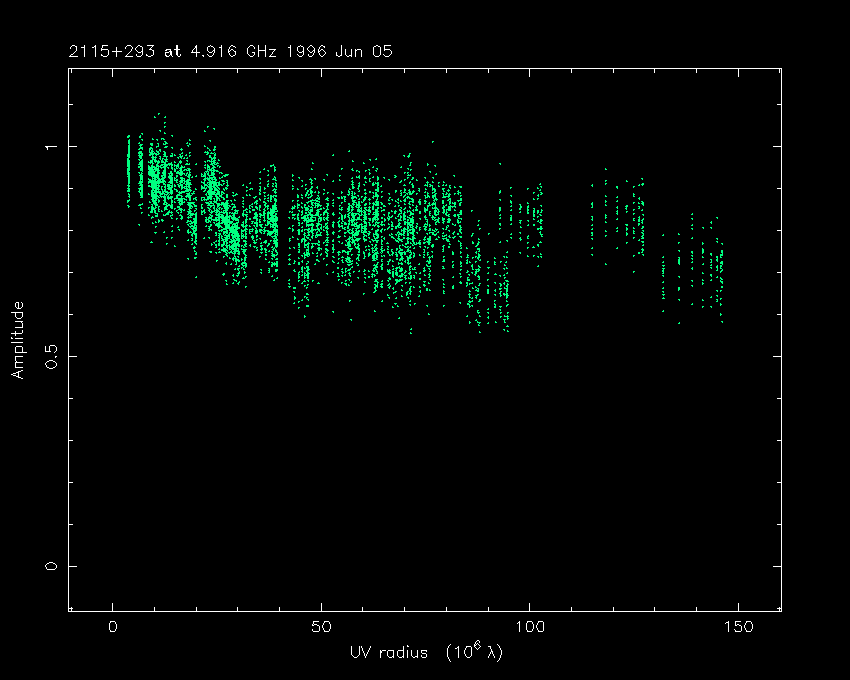

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.665 0.0 0.0 < 0.8 < 0.3 ...
0.203 0.1 -0.1 2.8 ± 0.7 < 0.5 162
0.077 -0.4 -2.5 4.1 ± 0.5 < 1.2 108
0.012 0.6 -5.6 3.3 2.0 ...

Other VLBI references

2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001
