J2022+6136

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

2021+614 20 h 22 m 6.6816 s + 61 ° 36 ´ 58.804 " 3.0 Jy galaxy 0.227

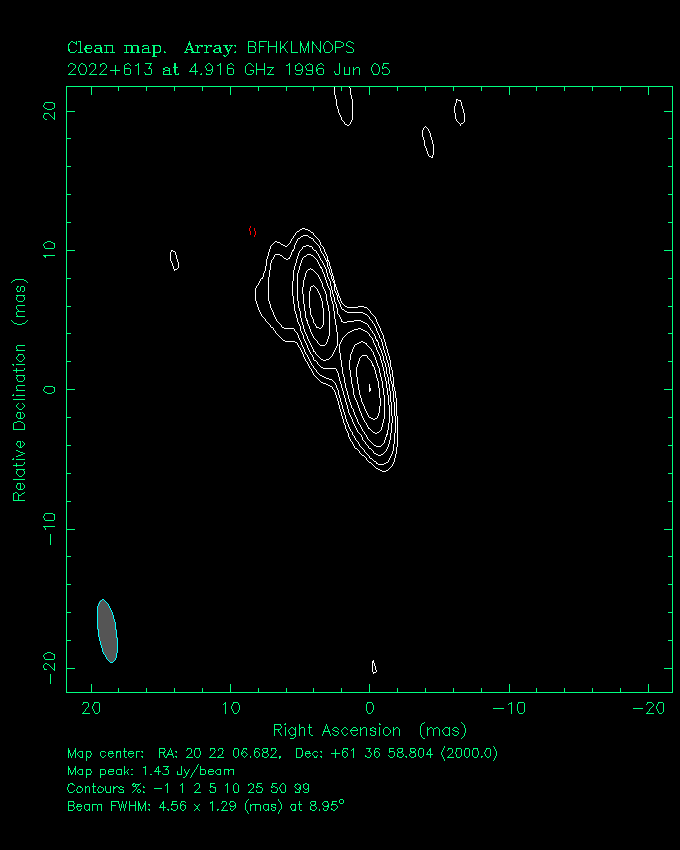

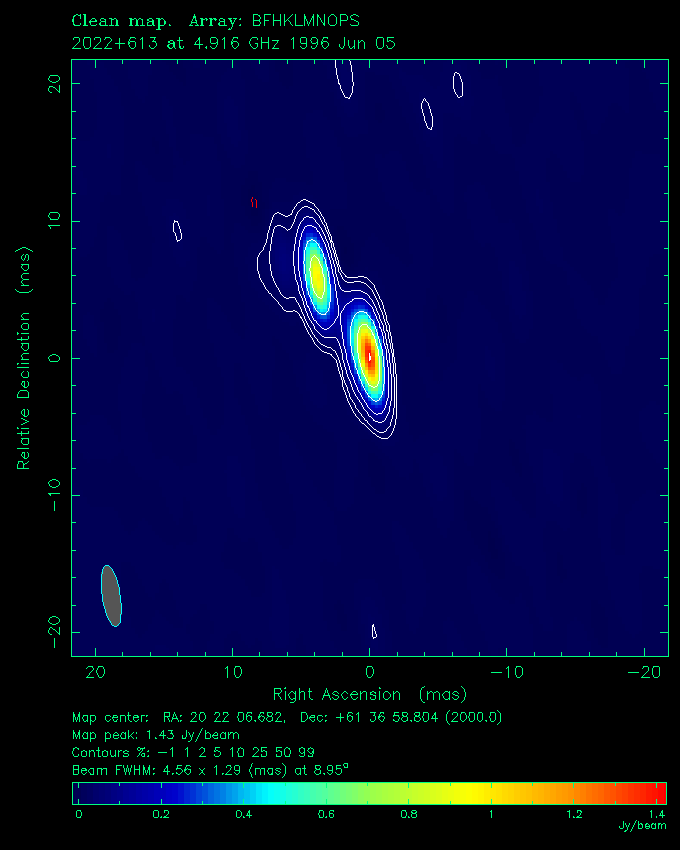

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

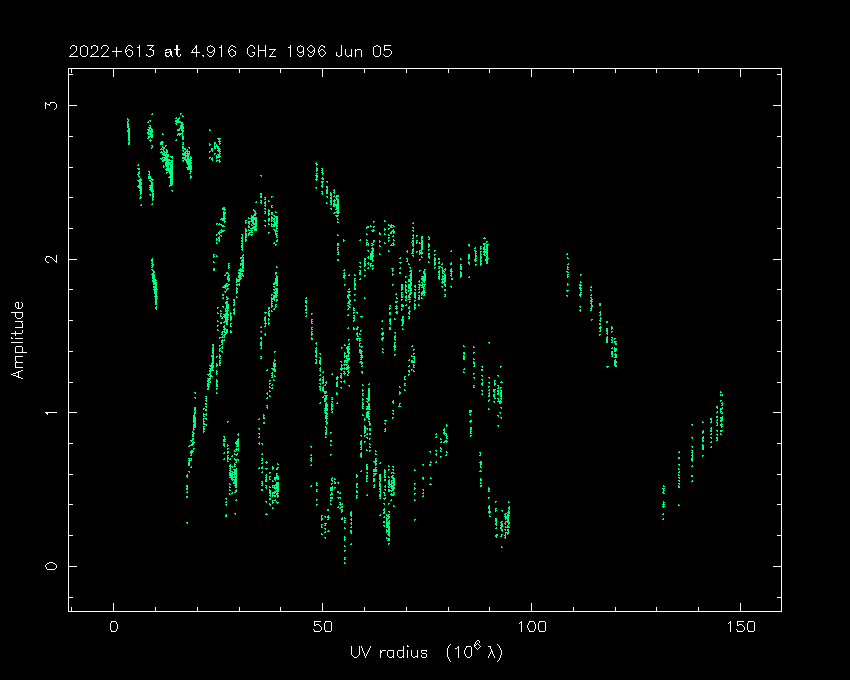

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

1.135 0.0 0.2 < 0.6 < 0.3 ...
0.652 0.7 0.6 3.2 ± 0.3 0.8 ± 0.3 27
1.052 3.8 5.9 0.6 ± 0.1 < 0.6 91
0.135 6.5 6.9 2.3 ± 0.4 < 1.5 114

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
1.6 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
2021+614	20 h 22 m 6.6816 s	+ 61 ° 36 ´ 58.804 "	3.0 Jy	galaxy	0.227

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
1.135	0.0	0.2	< 0.6	< 0.3	...
0.652	0.7	0.6	3.2 ± 0.3	0.8 ± 0.3	27
1.052	3.8	5.9	0.6 ± 0.1	< 0.6	91
0.135	6.5	6.9	2.3 ± 0.4	< 1.5	114
