J1800+7828

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

1803+784 18 h 0 m 45.6839 s + 78 ° 28 ´ 4.018 " 2.6 Jy quasar 0.680

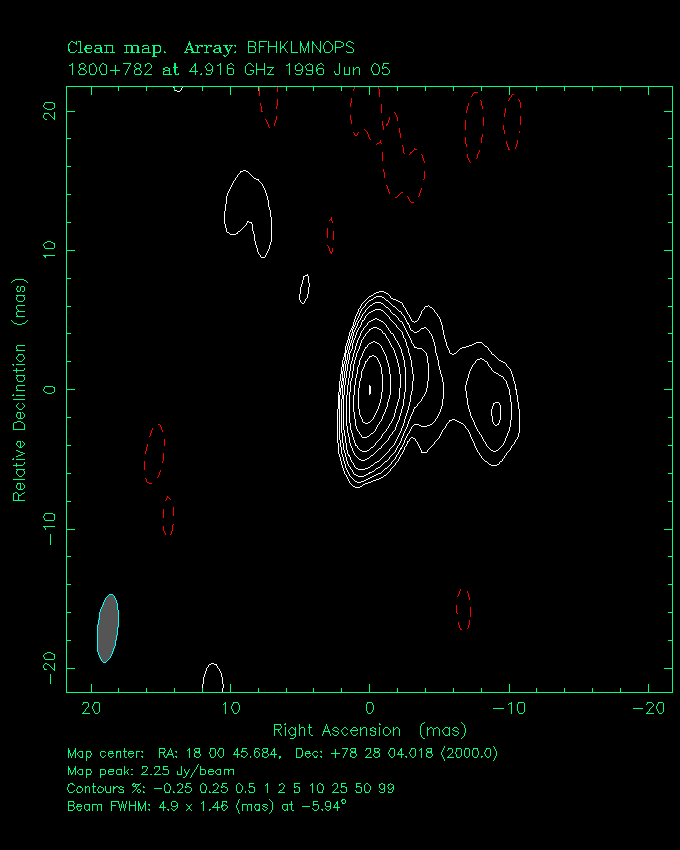

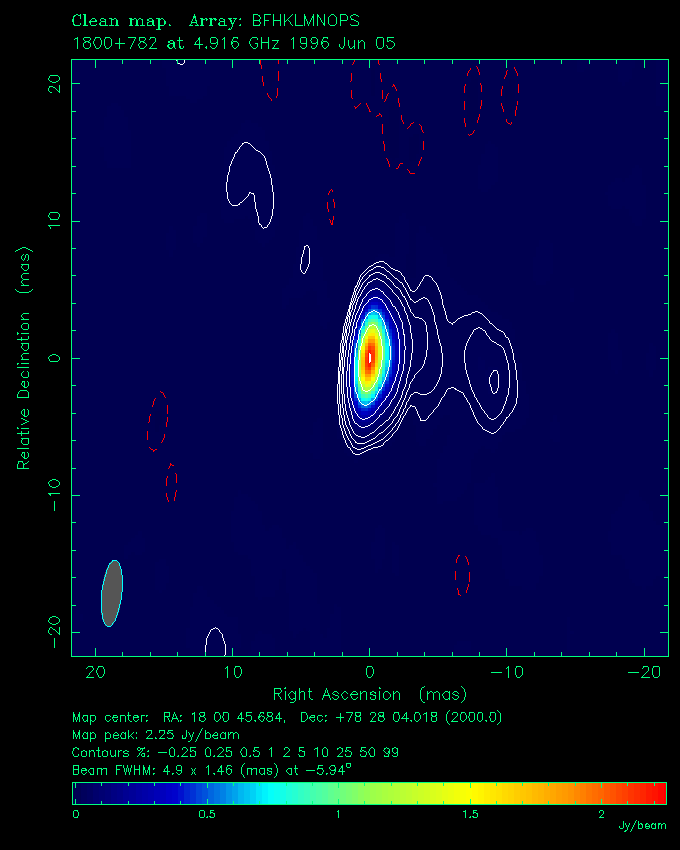

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

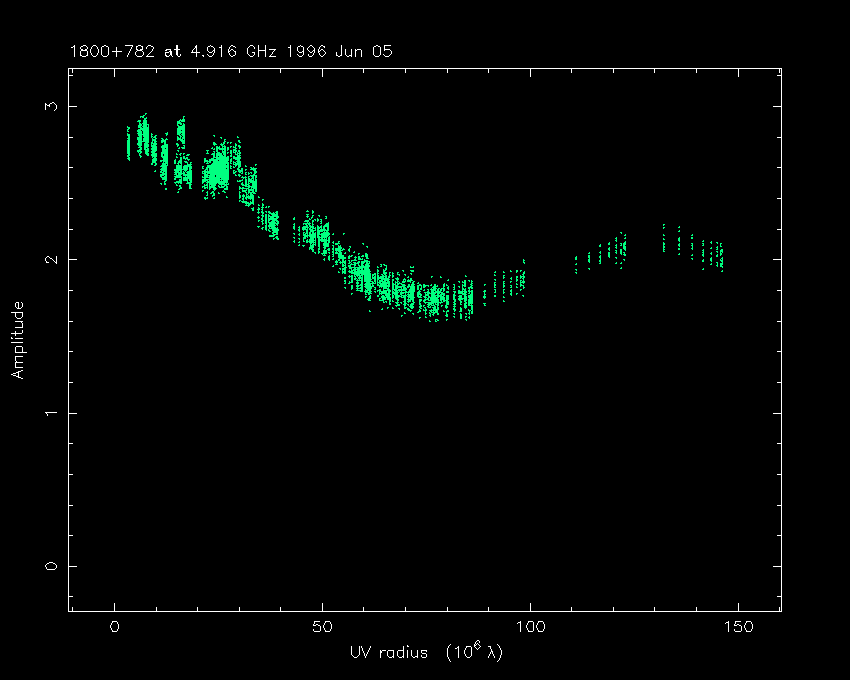

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

2.088 0.1 0.0 < 0.5 < 0.2 ...
0.640 -1.1 -0.1 1.1 ± 0.1 < 0.4 85
0.130 -6.1 -0.3 7.7 ± 0.8 1.6 ± 1.0 68

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001
