J1740+5211

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

1739+522 17 h 40 m 36.9778 s + 52 ° 11 ´ 43.407 " 1.1 Jy quasar 1.379

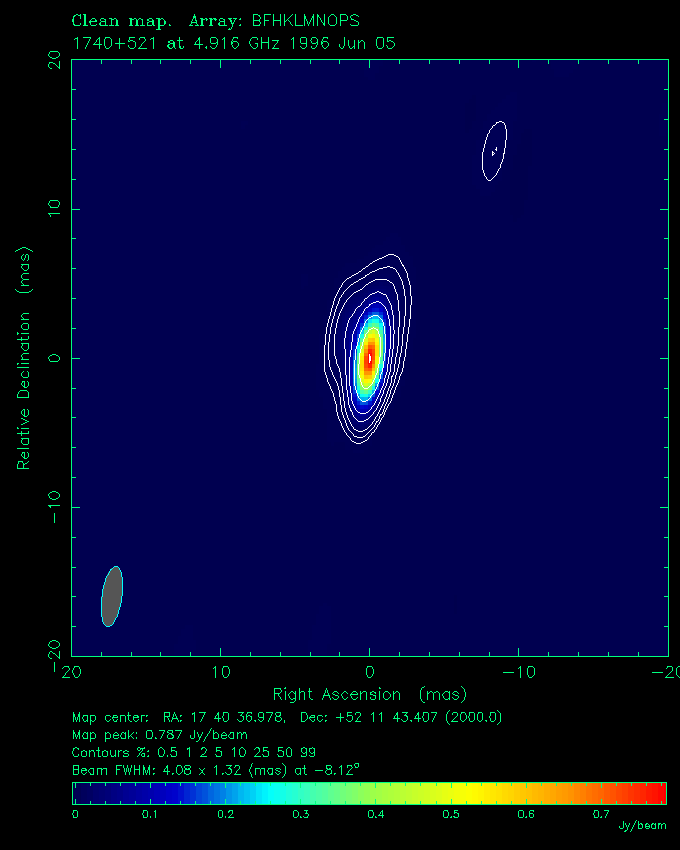

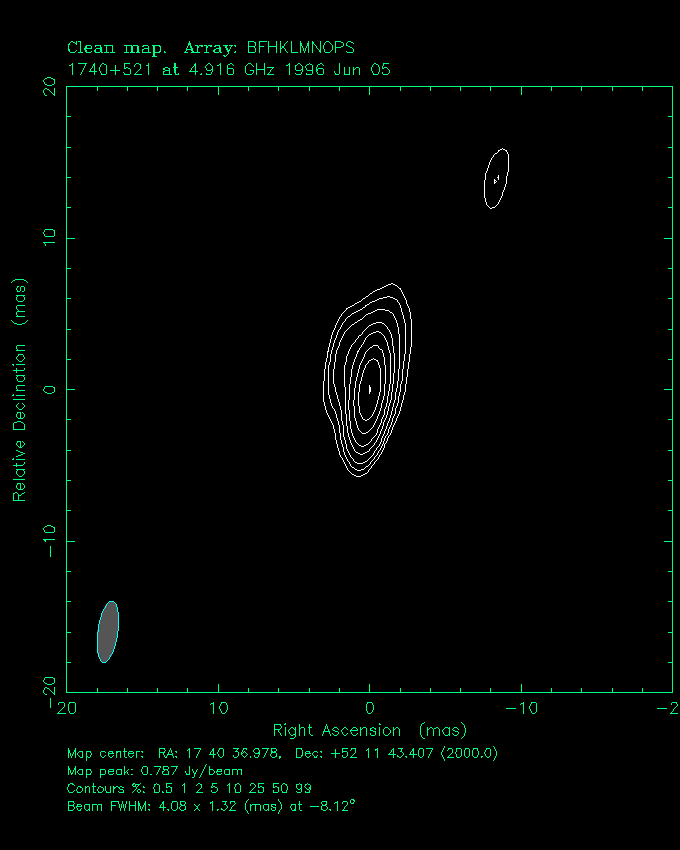

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

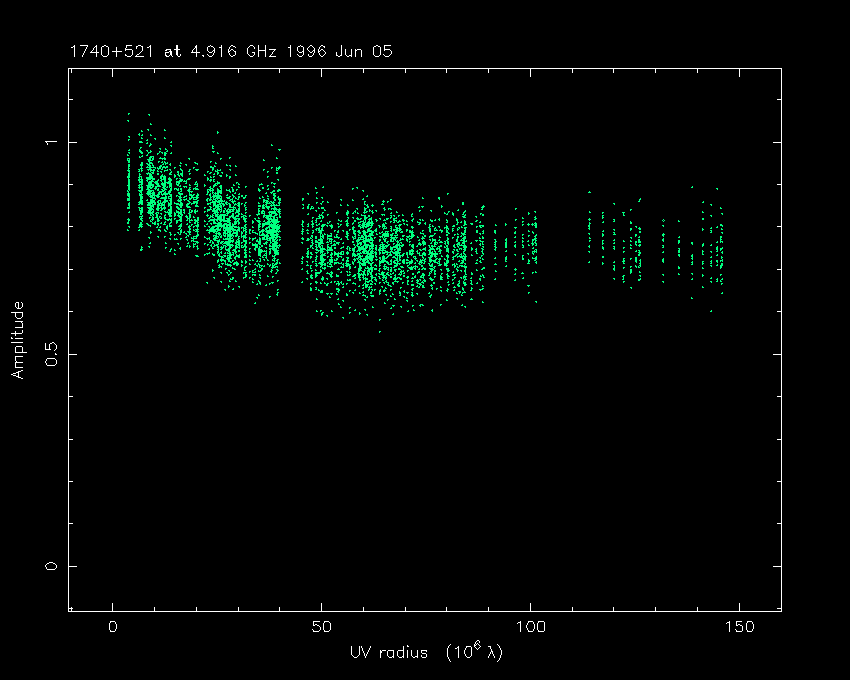

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.802 0.0 0.0 < 0.5 < 0.2 ...
0.074 1.2 1.8 2.1 ± 0.8 1.1 ± 0.4 160

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
1.6 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
2.3 and/or 8.4 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
1739+522	17 h 40 m 36.9778 s	+ 52 ° 11 ´ 43.407 "	1.1 Jy	quasar	1.379

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
0.802	0.0	0.0	< 0.5	< 0.2	...
0.074	1.2	1.8	2.1 ± 0.8	1.1 ± 0.4	160
