J1613+3412

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

1611+343 16 h 13 m 41.0642 s + 34 ° 12 ´ 47.908 " 4.0 Jy quasar 1.401

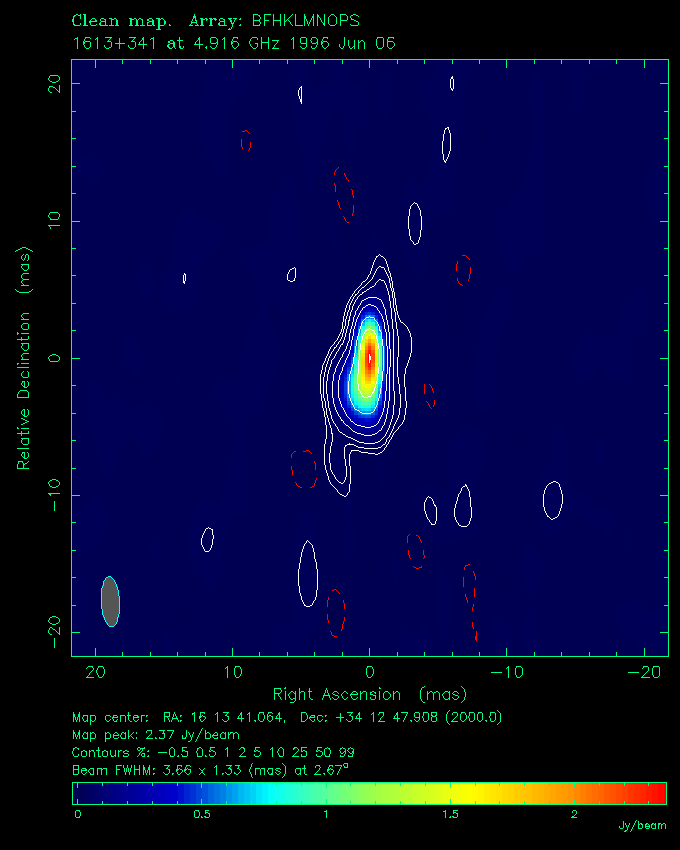

VLBApls image at 5 GHz

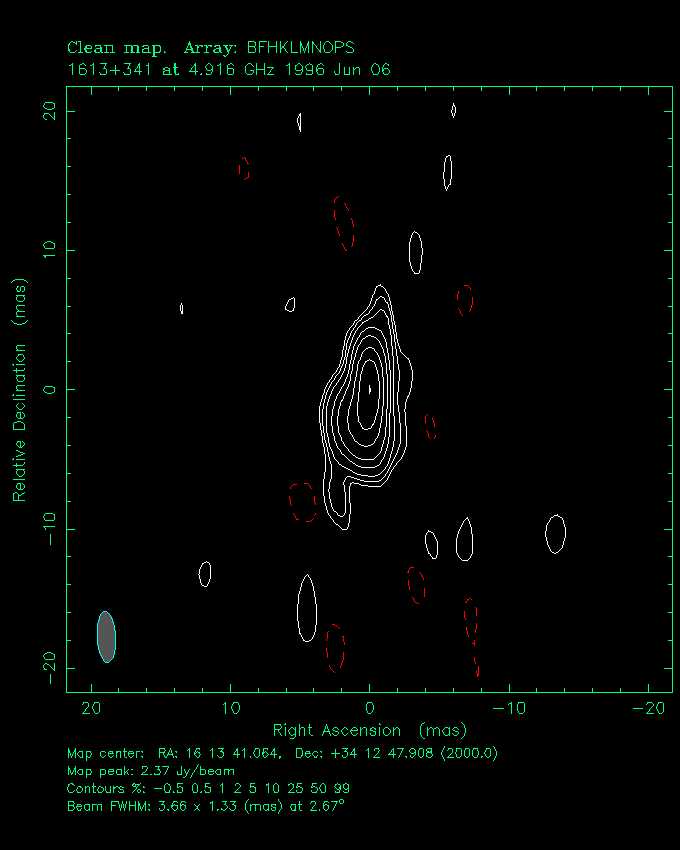

color gif | contour gif | contour PostScript

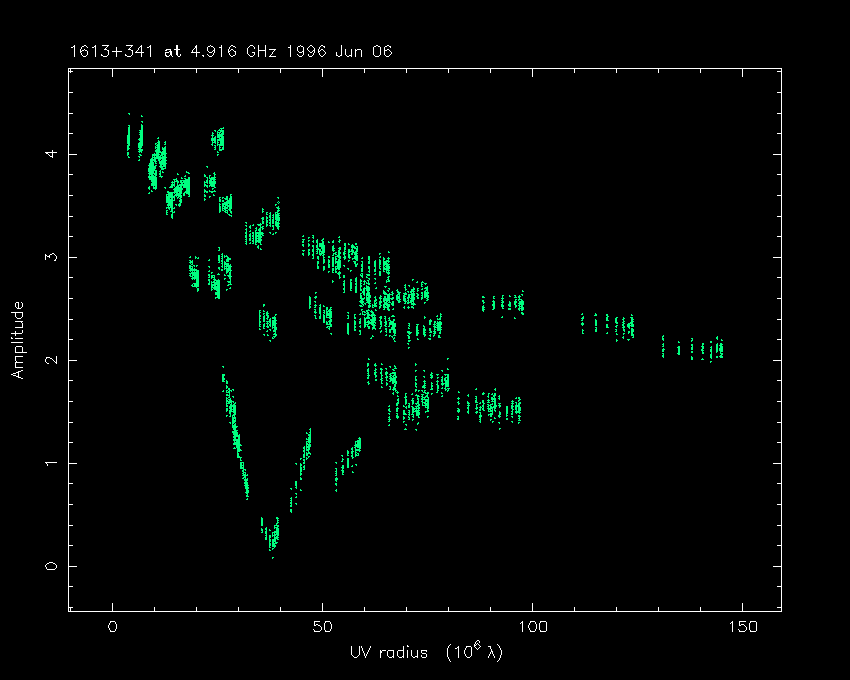

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

2.452 0.0 0.3 1.6 ± 0.1 < 0.1 172
1.646 0.6 -2.4 1.9 ± 0.1 < 0.4 74
0.083 2.4 -3.7 < 5.2 < 0.0 74
0.087 -1.0 4.2 < 6.5 < 0.0 74

Other VLBI references

2.3 and/or 8.4 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
1611+343	16 h 13 m 41.0642 s	+ 34 ° 12 ´ 47.908 "	4.0 Jy	quasar	1.401

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
2.452	0.0	0.3	1.6 ± 0.1	< 0.1	172
1.646	0.6	-2.4	1.9 ± 0.1	< 0.4	74
0.083	2.4	-3.7	< 5.2	< 0.0	74
0.087	-1.0	4.2	< 6.5	< 0.0	74
