J1543-0757

J1543-0757

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
1540-077 15 h 43 m 1.687 s * -7 ° 57 ´ 6.65 " 1.0 Jy galaxy ...
* = the position has been determined to an accuracy of 10 mas from the VLBApls data

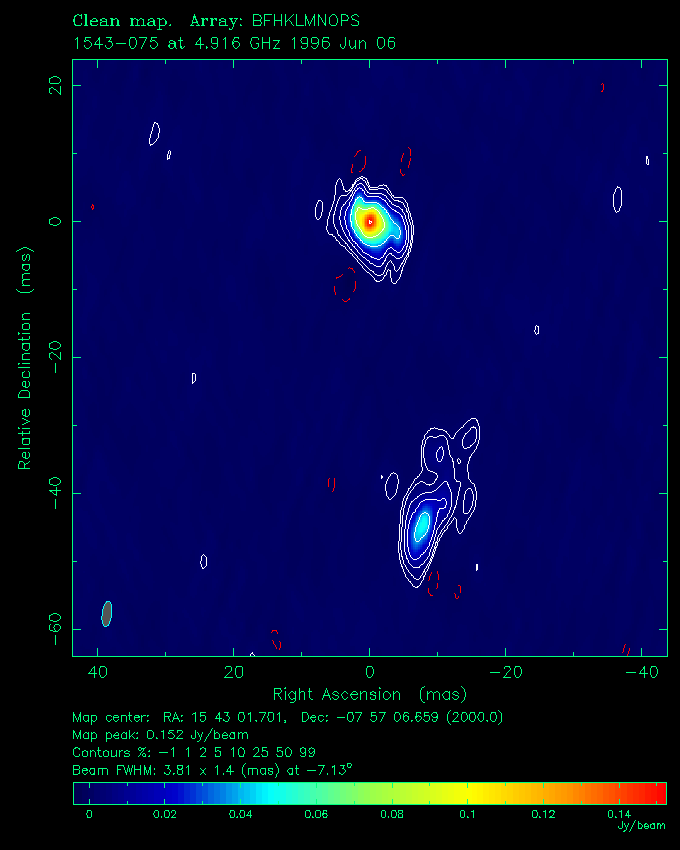

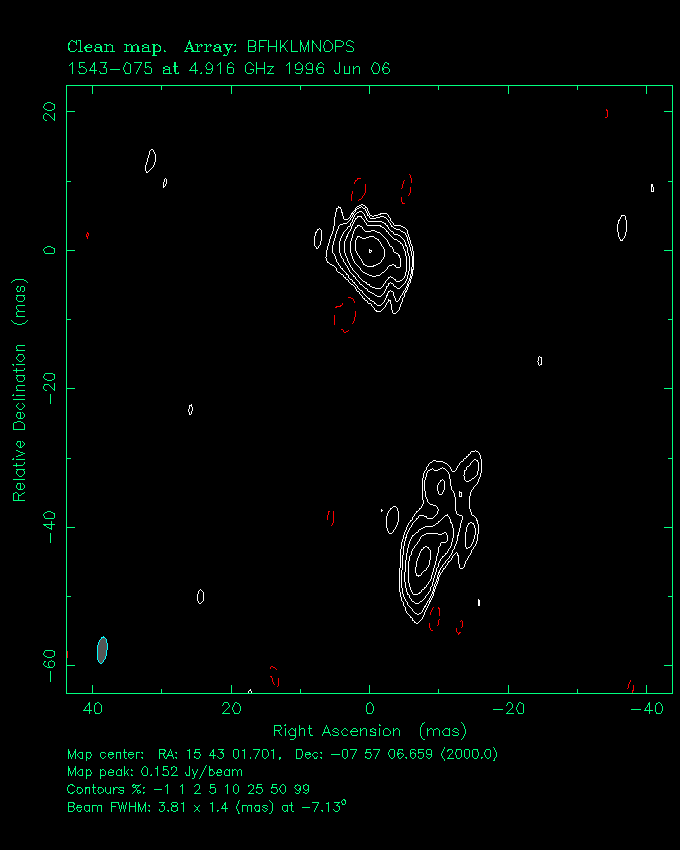

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

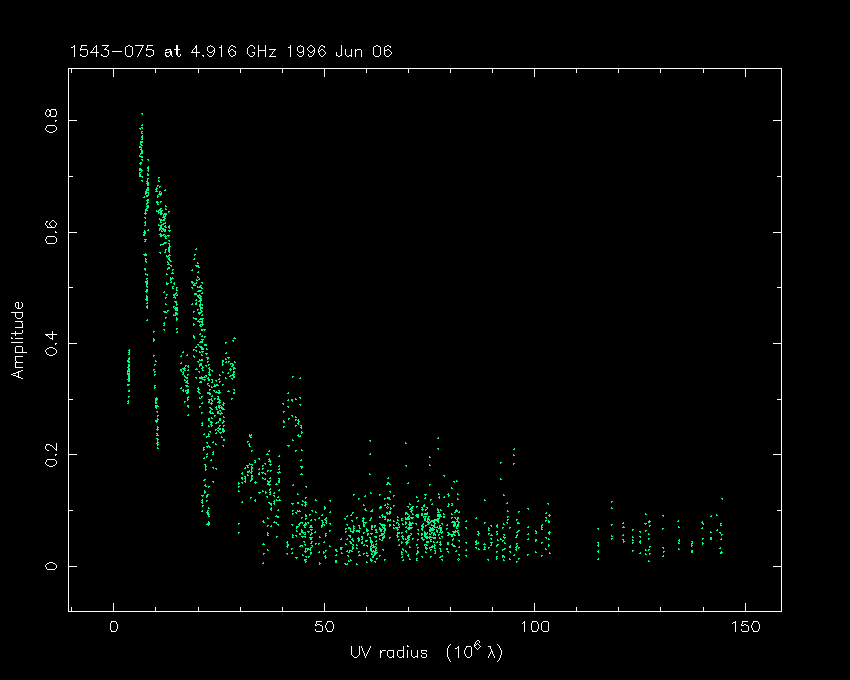

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
0.591 -0.3 -0.2 5.1 ± 0.6 2.6 ± 0.7 66
0.212 -7.9 -44.6 7.2 ± 0.9 2.7 ± 0.4 160

Other VLBI references
