other name | right ascension (J2000) | declination (J2000) | 5-GHz total flux density | optical ID | redshift |
3C 286 | 13 h 31 m 8.2881 s | + 30 ° 30 ´ 32.959 " | 6.3 Jy | quasar | 0.846 |

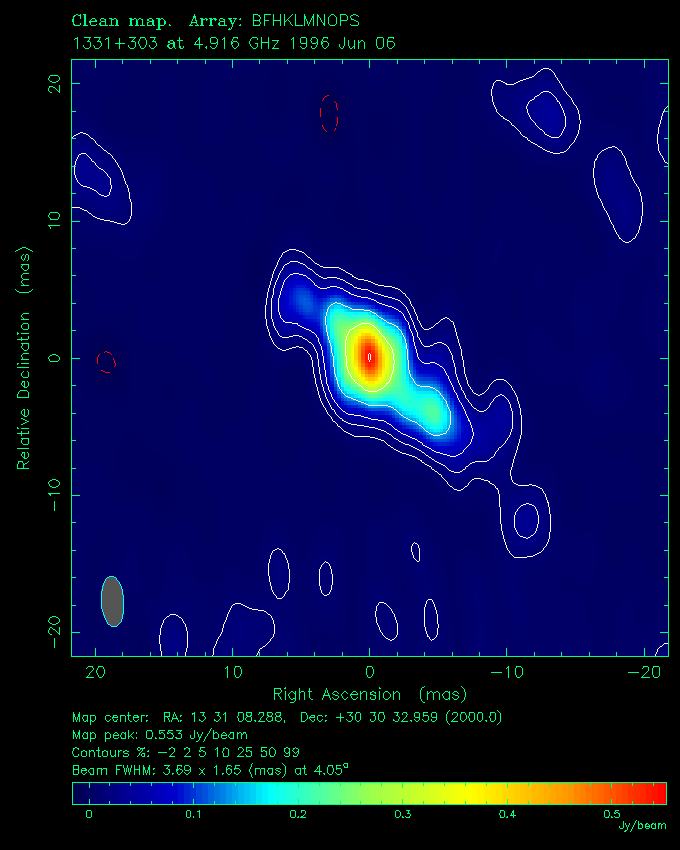

VLBApls image at 5 GHz
color gif
|

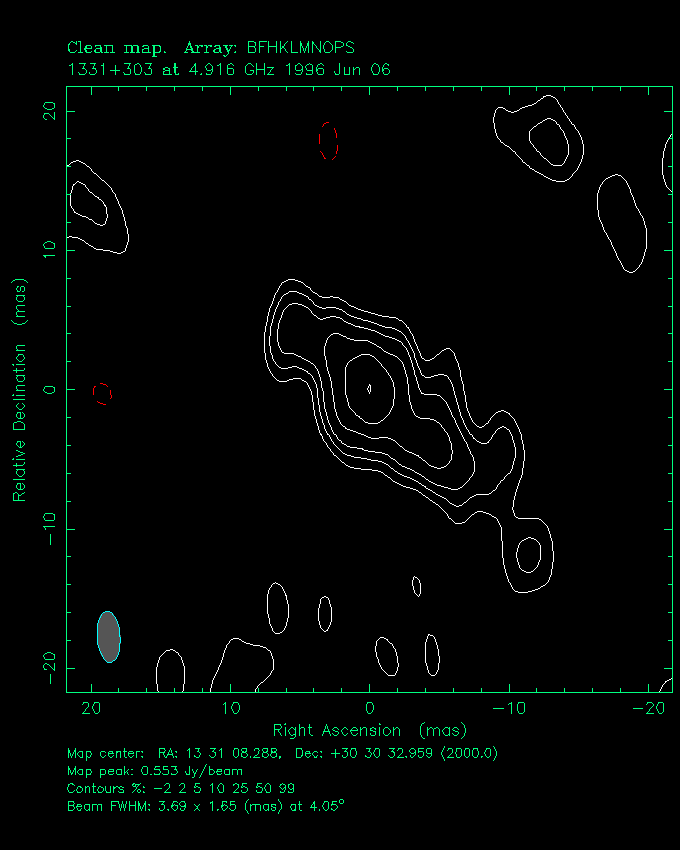

contour gif
|
contour PostScript

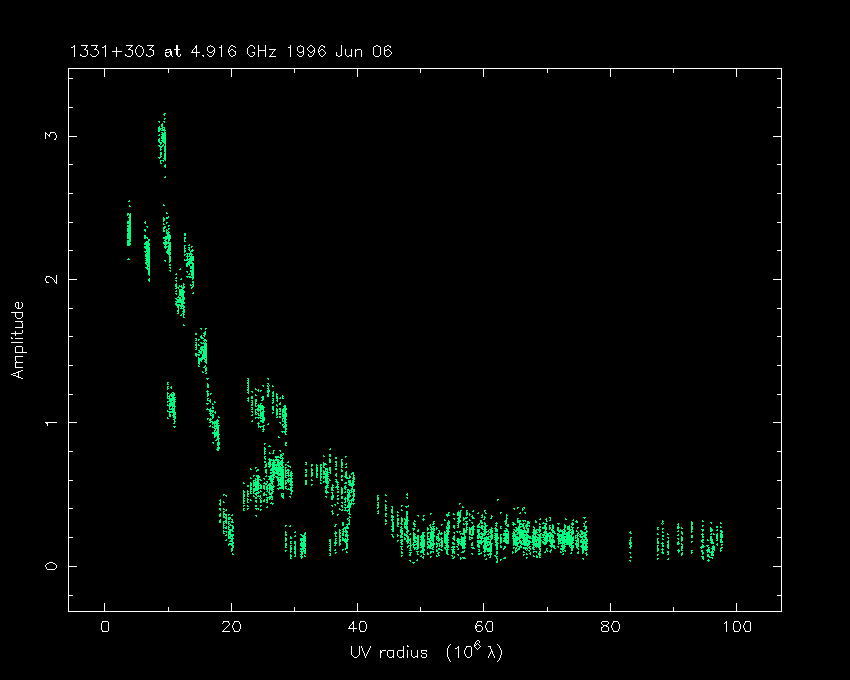

Correlated flux density (Jy) vs. projected baseline length plot
gif |
PostScript
flux density (Jy) | EW position (mas) | NS position (mas) | major axis (mas) | minor axis (mas) | position angle (°) |
1.723 | 0.2 | 0.2 | 4.6 ± 0.2 | 3.6 ± 0.1 | 33 |
0.978 | -4.7 | -4.0 | 7.4 ± 0.8 | 3.7 ± 0.6 | 61 |
0.192 | 5.5 | 3.5 | 2.6 ± 0.4 | < 1.5 | 108 |
