J1209-2406

J1209-2406

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
1206-238 12 h 9 m 2.446 s * -24 ° 6 ´ 20.75 " 1.1 Jy BL Lac ...
* = the position has been determined to an accuracy of 10 mas from the VLBApls data

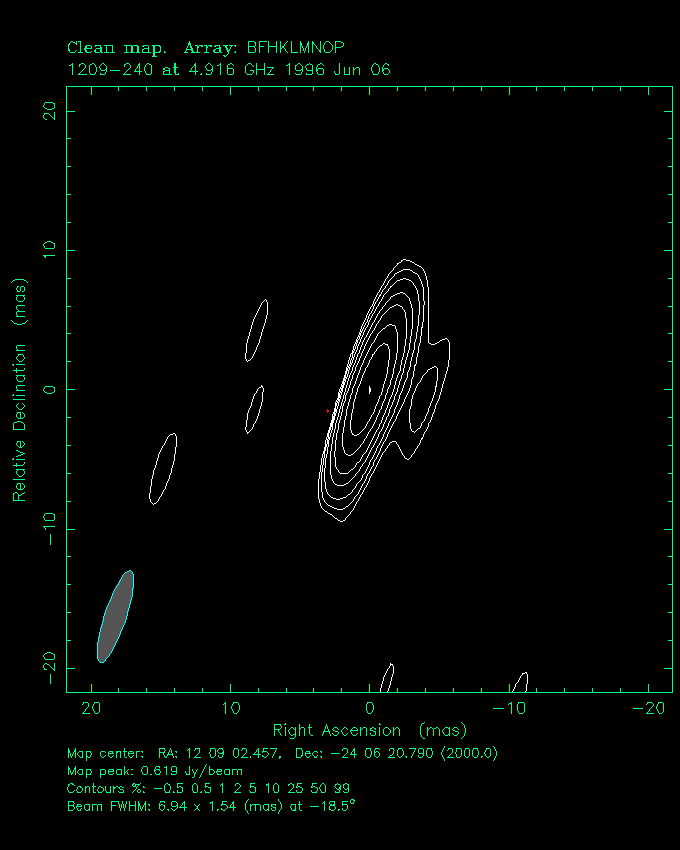

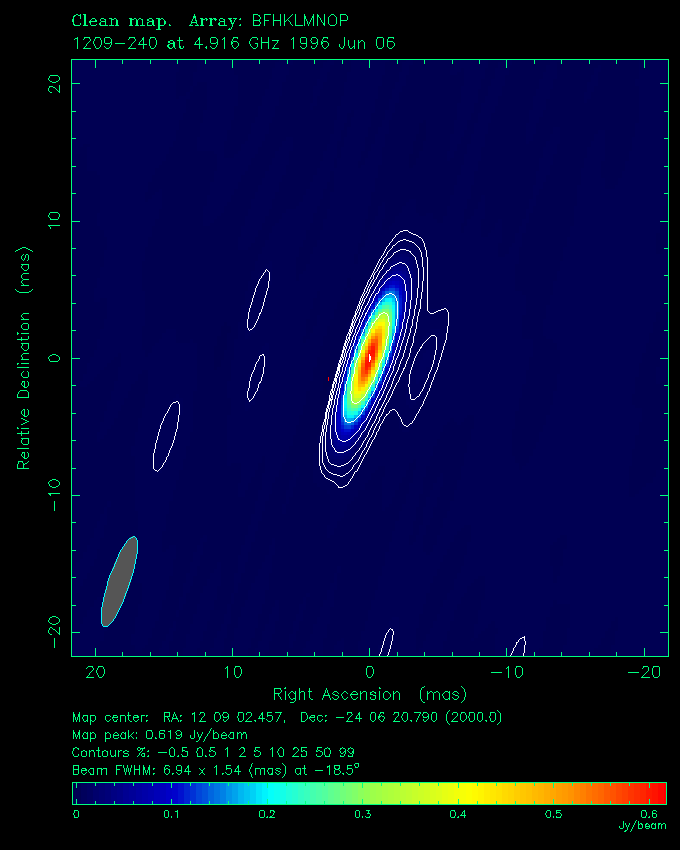

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

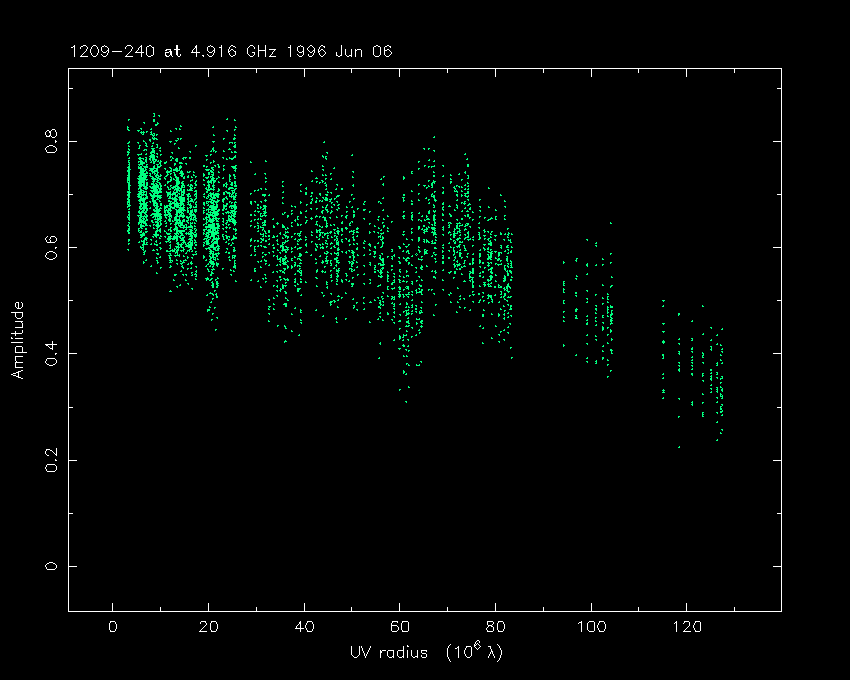

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
0.683 0.0 0.0 1.2 ± 0.2 < 0.3 126
0.035 -3.8 0.5 3.7 2.0 ...

Other VLBI references
