J1147-0724

J1147-0724

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
1145-071 11 h 47 m 51.5540 s -7 ° 24 ´ 41.140 " 1.2 Jy quasar 1.342

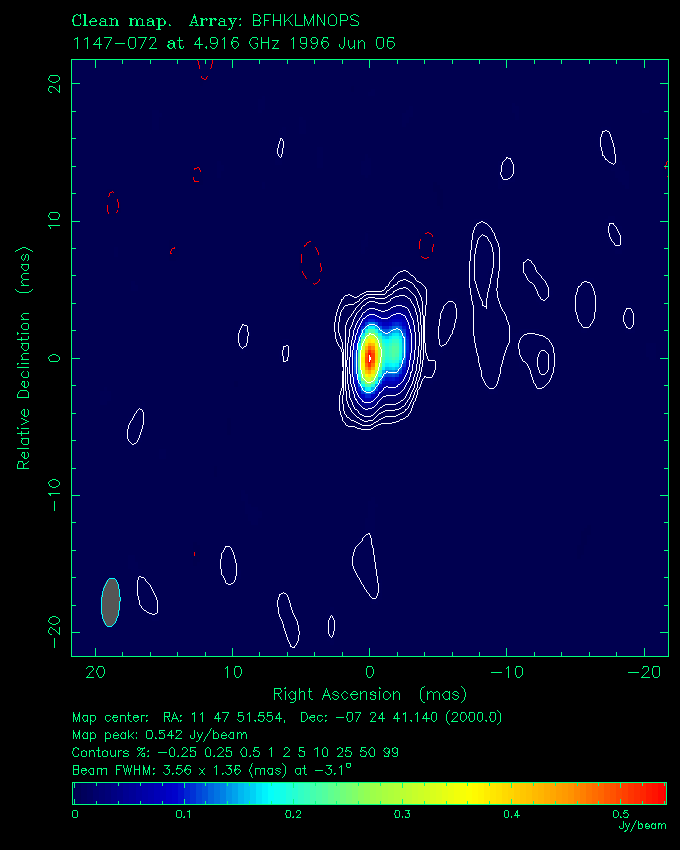

VLBApls image at 5 GHz

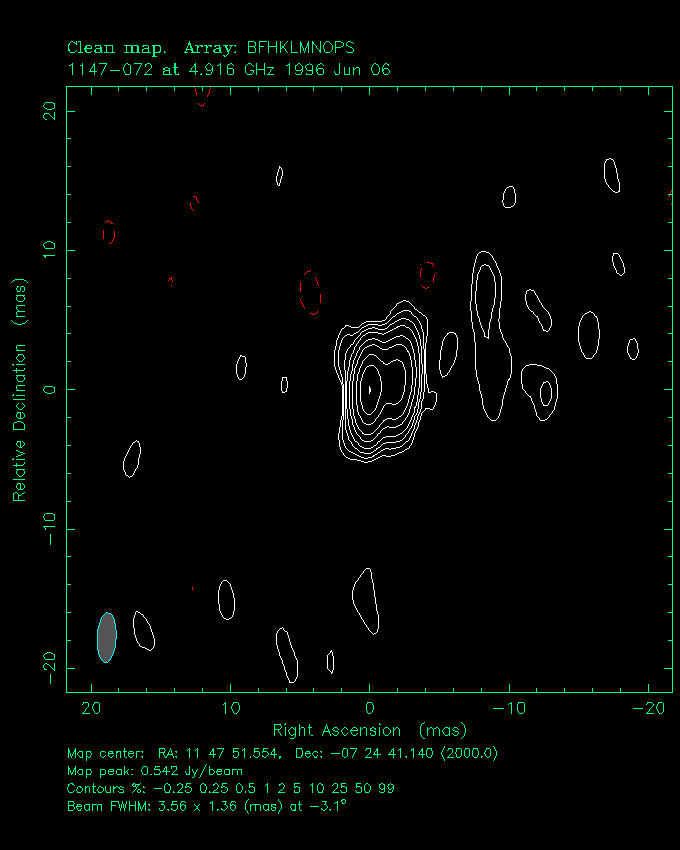

color gif | contour gif | contour PostScript

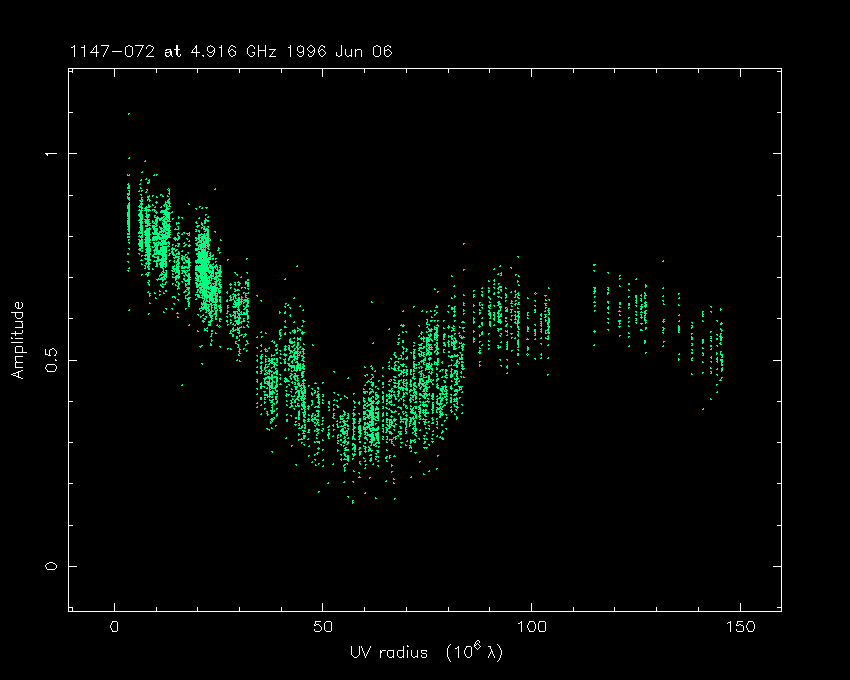

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
0.534 0.0 0.0 < 0.5 < 0.5 ...
0.287 -1.9 0.6 < 0.9 0.9 ± 0.3 163
0.013 -8.4 1.6 5.1 2.0 46

Other VLBI references
