J1006+3454

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

3C 236 10 h 6 m 1.750 s * + 34 ° 54 ´ 10.40 " 1.7 Jy galaxy 0.099

* = the position has been determined to an accuracy of 10 mas from the VLBApls data

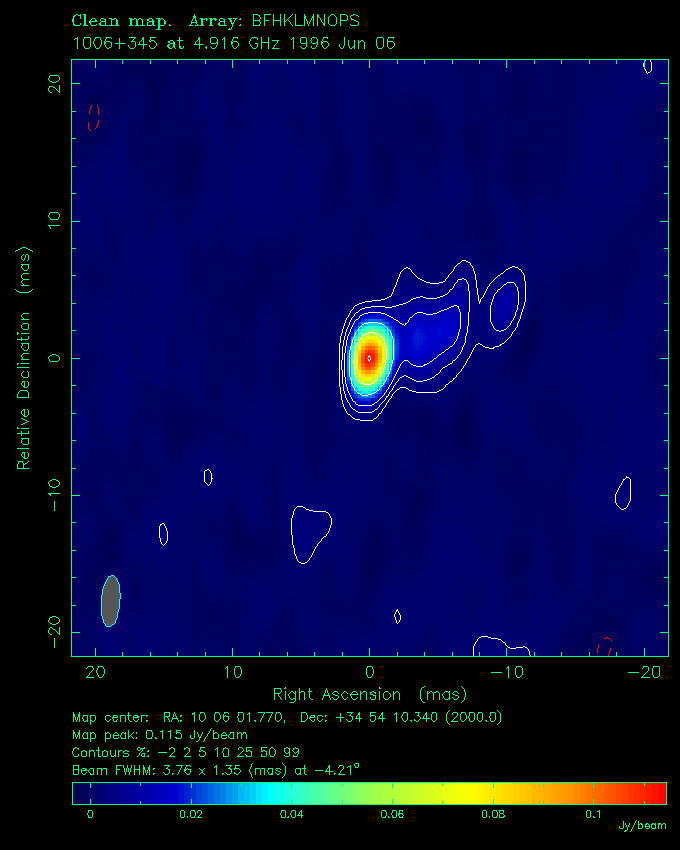

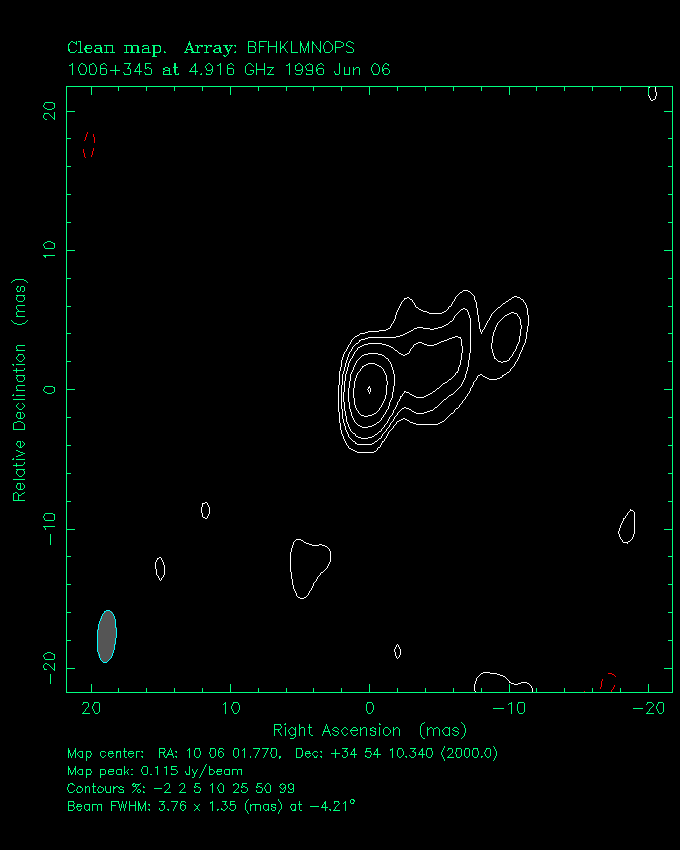

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

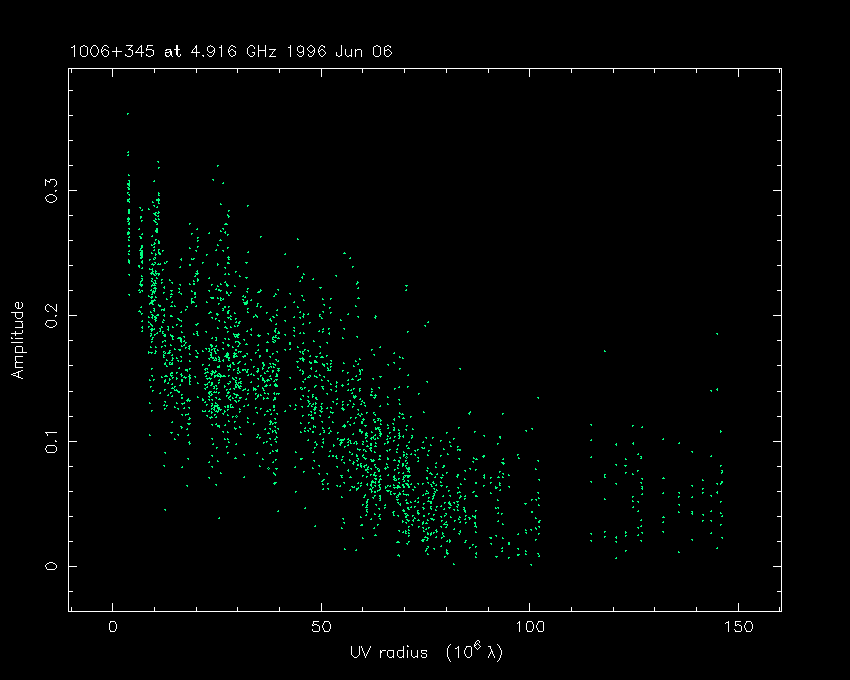

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.188 0.0 0.0 1.8 ± 0.3 < 1.5 99
0.083 -4.3 1.7 < 5.4 < 2.5 99
0.013 -10.0 4.1 2.3 2.0 ...

Notes

A source-specific comment is given in the VLBApls paper.

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183

VLBApls home page
Last modified: 19 Jan 2001
