J0958+6533

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0954+658 9 h 58 m 47.2451 s + 65 ° 33 ´ 54.818 " 1.4 Jy BL Lac 0.367

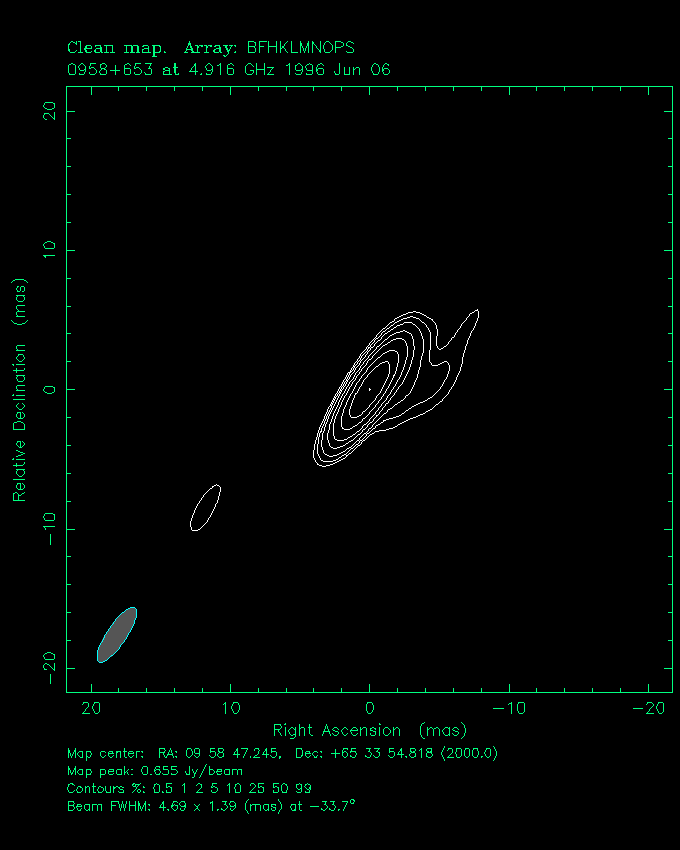

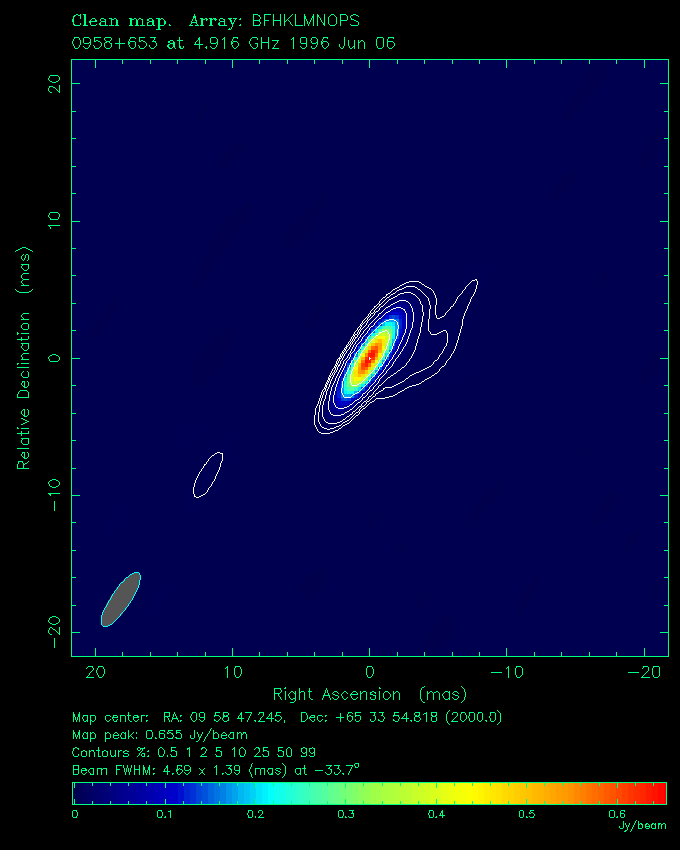

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

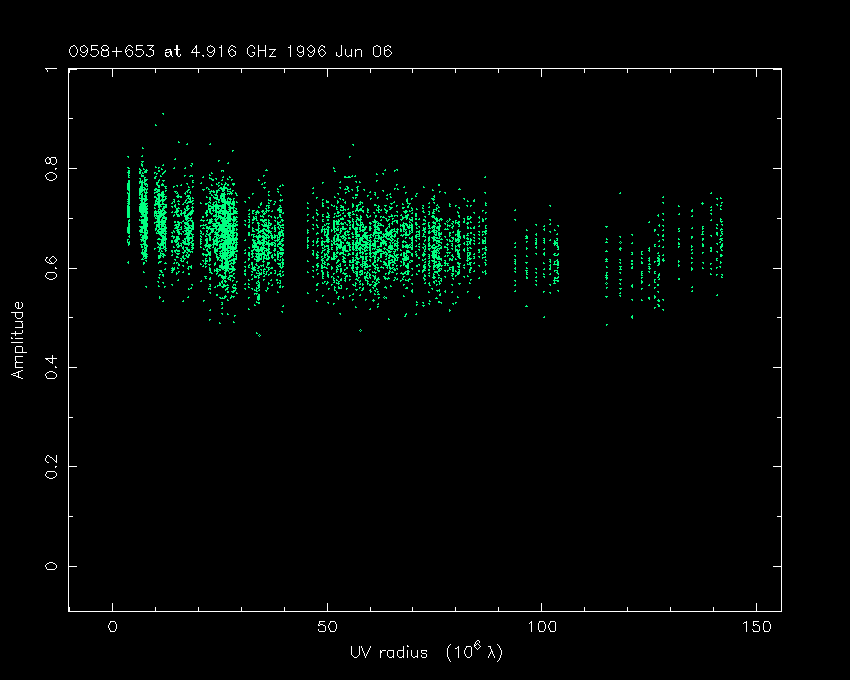

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.655 0.0 0.0 < 0.5 < 0.4 ...
0.058 -2.2 1.1 2.3 ± 0.6 < 0.7 38

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001
