J0909+4253

J0909+4253

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
3C 216 9 h 9 m 33.497 s * + 42 ° 53 ´ 46.48 " 1.5 Jy quasar 0.670
* = the position has been determined to an accuracy of 10 mas from the VLBApls data

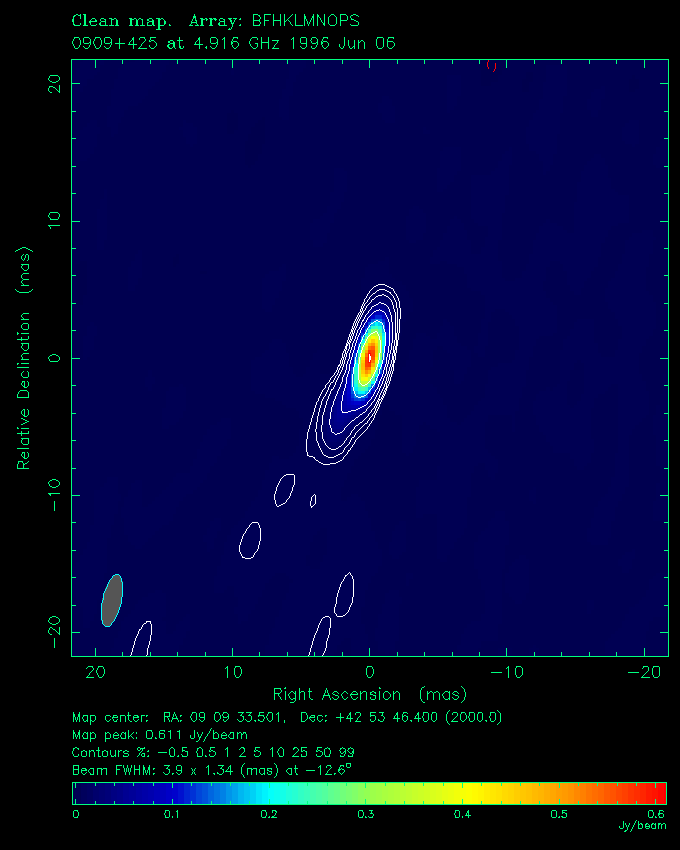

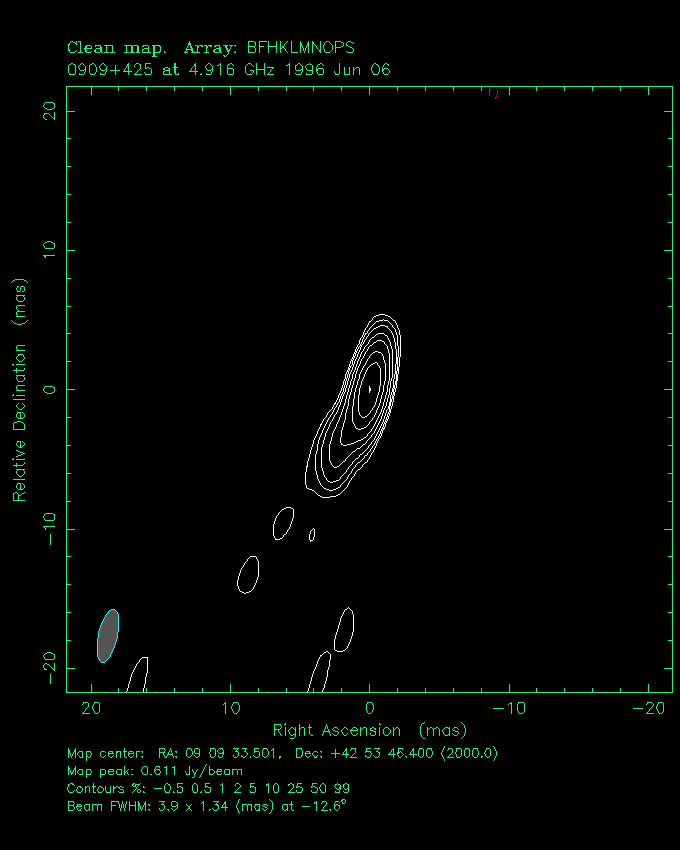

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

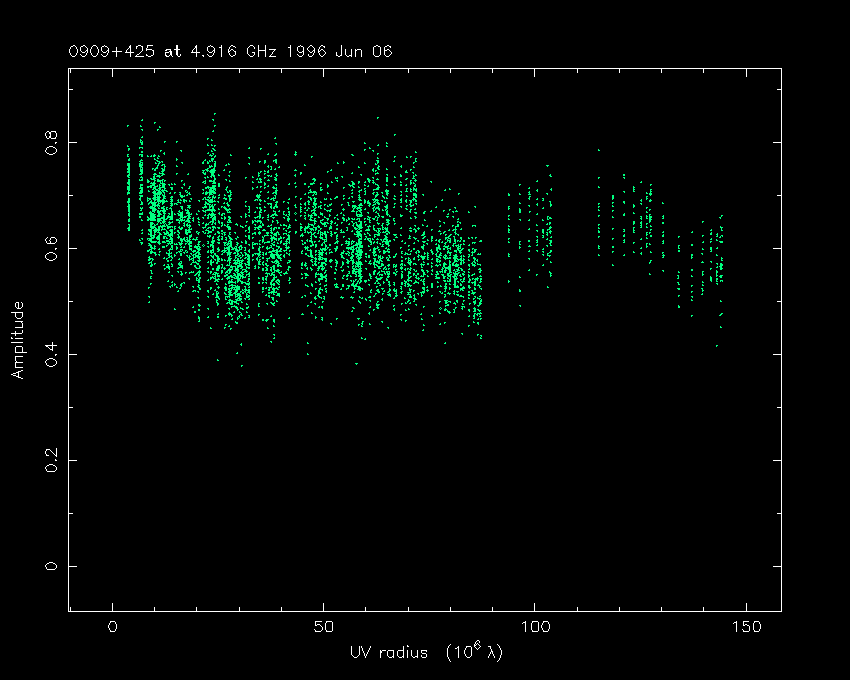

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
0.620 0.0 0.0 0.8 ± 0.4 < 0.3 150
0.085 1.9 -3.4 2.7 ± 0.6 < 0.6 149

Other VLBI references
