J0903+4651

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0859+470 9 h 3 m 3.9901 s + 46 ° 51 ´ 4.137 " 1.3 Jy quasar 1.462

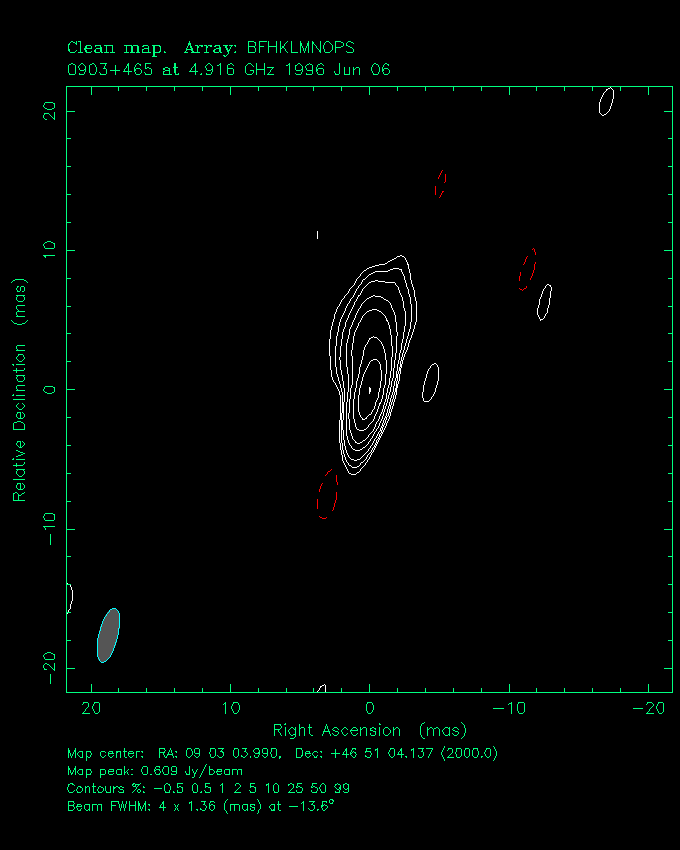

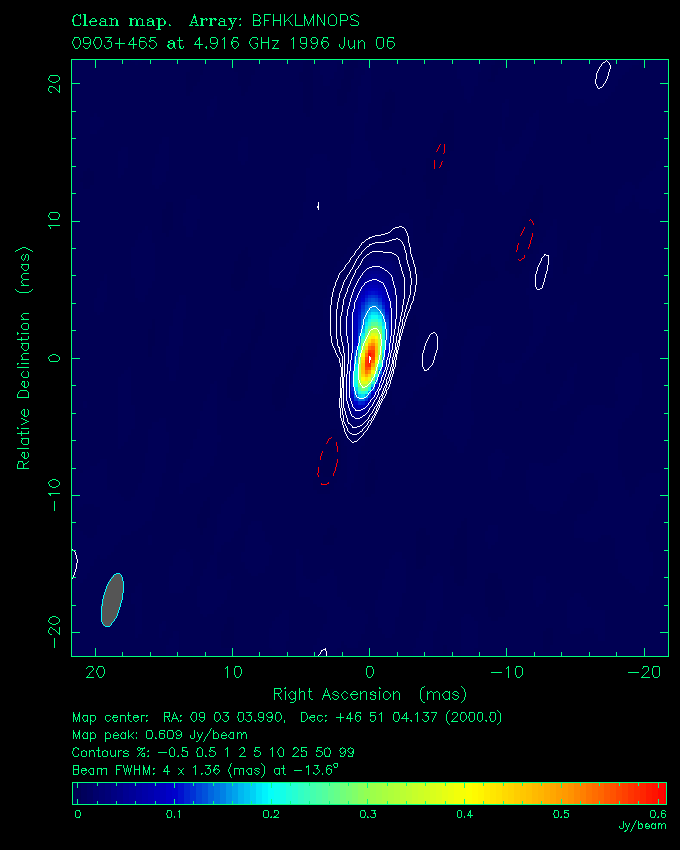

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

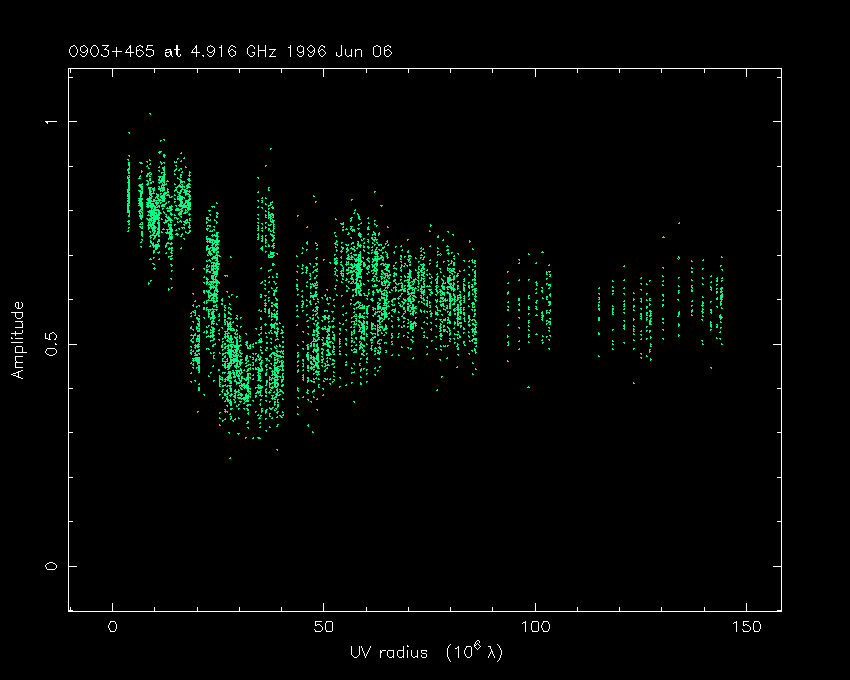

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.591 0.0 -0.2 0.9 ± 0.5 < 0.2 169
0.261 0.0 3.3 2.7 ± 0.7 1.7 ± 0.3 178

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
1.6 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
0859+470	9 h 3 m 3.9901 s	+ 46 ° 51 ´ 4.137 "	1.3 Jy	quasar	1.462

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
0.591	0.0	-0.2	0.9 ± 0.5	< 0.2	169
0.261	0.0	3.3	2.7 ± 0.7	1.7 ± 0.3	178
