J0841+7053

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0836+710 8 h 41 m 24.3652 s + 70 ° 53 ´ 42.173 " 2.4 Jy quasar 2.180

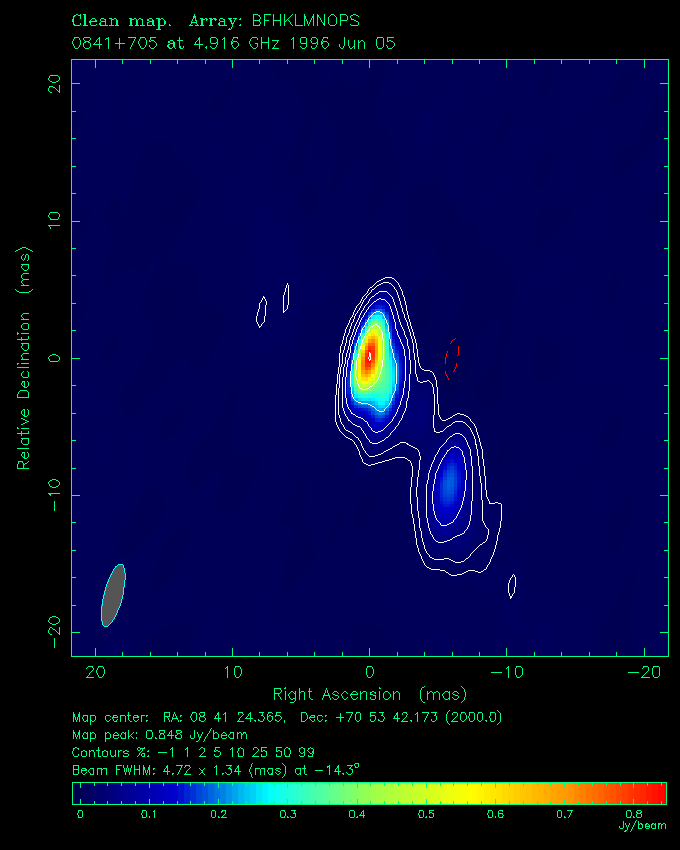

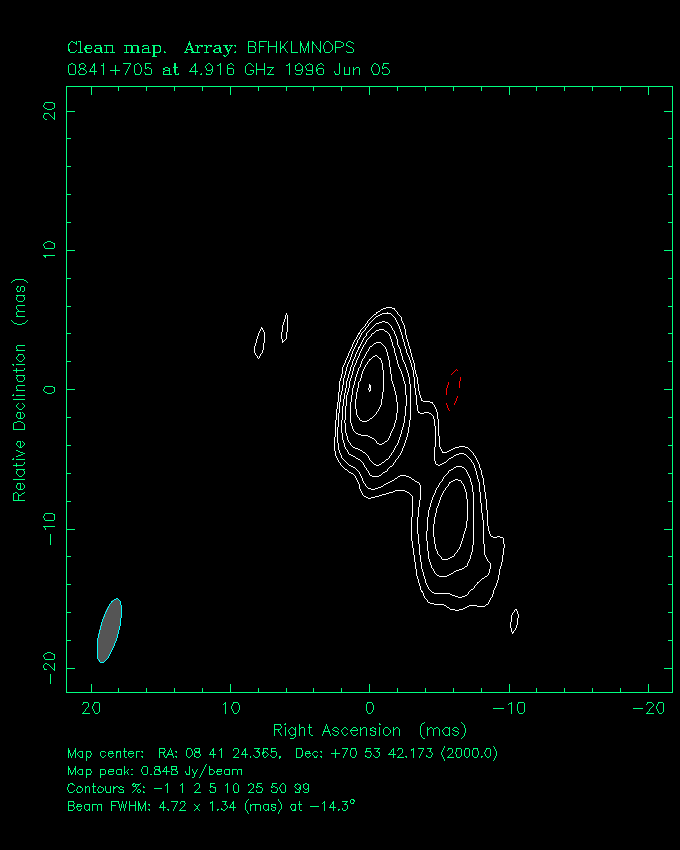

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

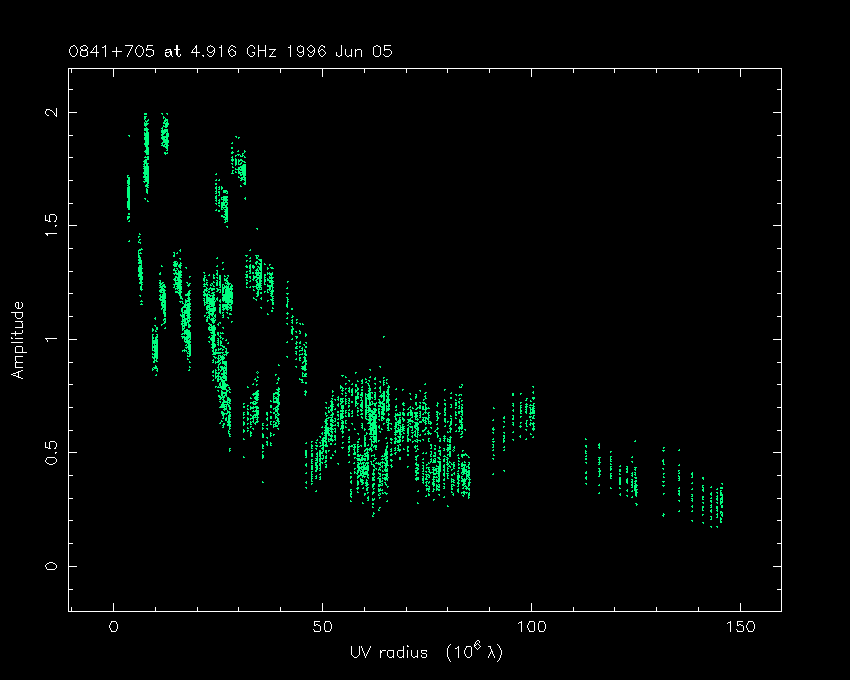

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.935 0.1 0.2 0.9 ± 0.1 < 0.3 55
0.480 -1.1 -1.7 2.0 ± 0.2 < 0.6 34
0.351 -5.8 -9.4 3.2 ± 0.6 1.5 ± 0.3 1
0.086 -3.6 -6.3 < 5.8 < 2.0 1

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
0836+710	8 h 41 m 24.3652 s	+ 70 ° 53 ´ 42.173 "	2.4 Jy	quasar	2.180

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
0.935	0.1	0.2	0.9 ± 0.1	< 0.3	55
0.480	-1.1	-1.7	2.0 ± 0.2	< 0.6	34
0.351	-5.8	-9.4	3.2 ± 0.6	1.5 ± 0.3	1
0.086	-3.6	-6.3	< 5.8	< 2.0	1
