J0825+0309

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0823+033 8 h 25 m 50.3383 s + 3 ° 9 ´ 24.521 " 1.6 Jy BL Lac 0.506

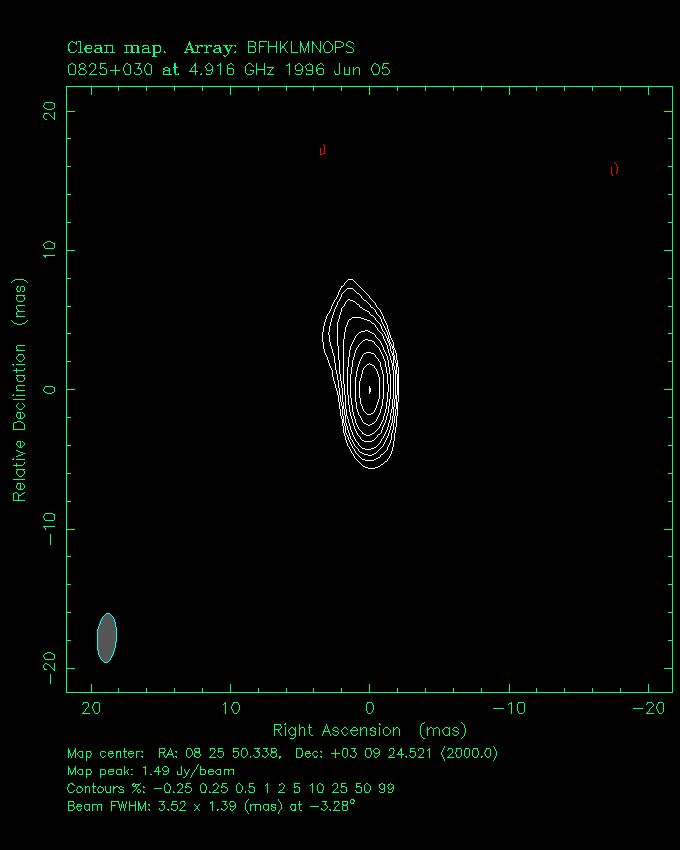

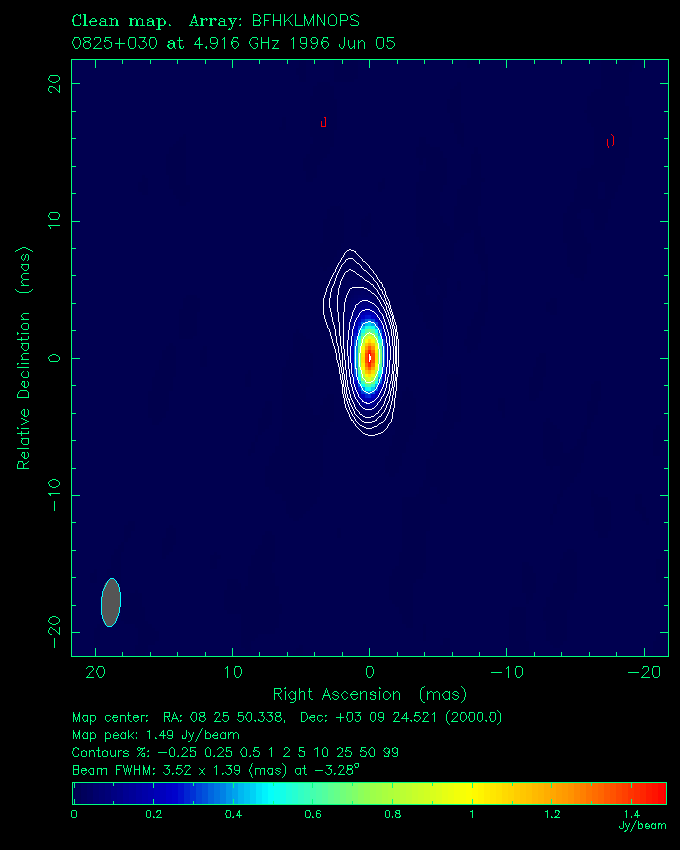

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

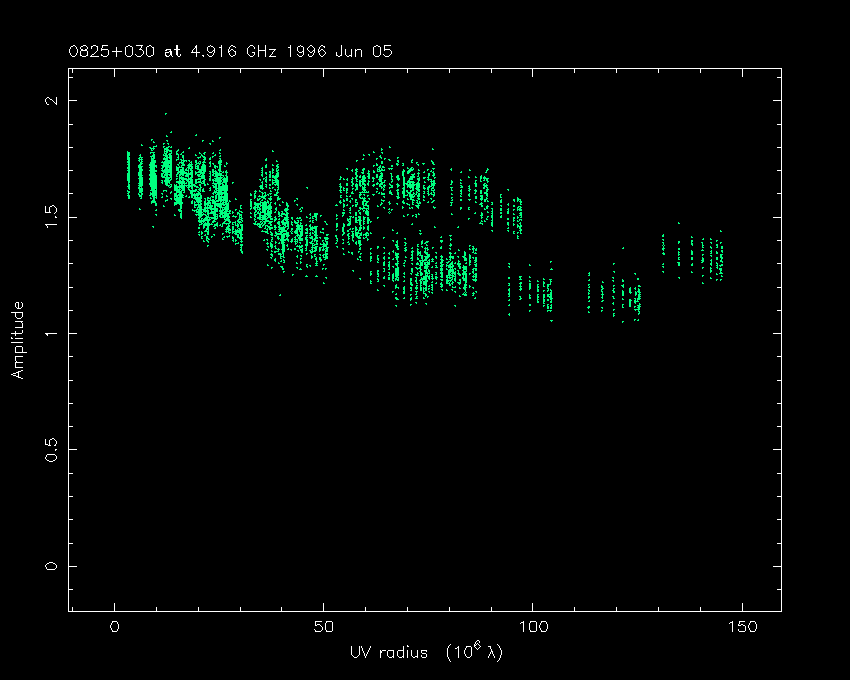

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

1.418 0.0 -0.1 0.6 ± 0.2 < 0.1 20
0.255 0.5 1.5 2.5 ± 0.6 < 0.5 11
0.031 1.8 4.5 3.8 2.0 ...

Other VLBI references

2.3 and/or 8.4 GHz: multiple epoch VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001
