J0824+5552

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0820+560 8 h 24 m 47.2363 s + 55 ° 52 ´ 42.669 " 1.2 Jy quasar 1.417

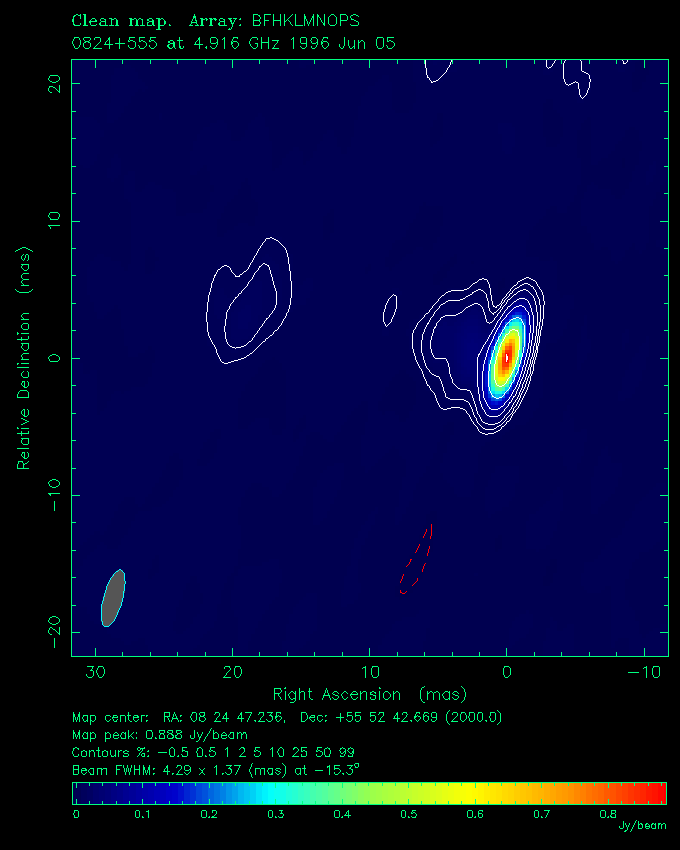

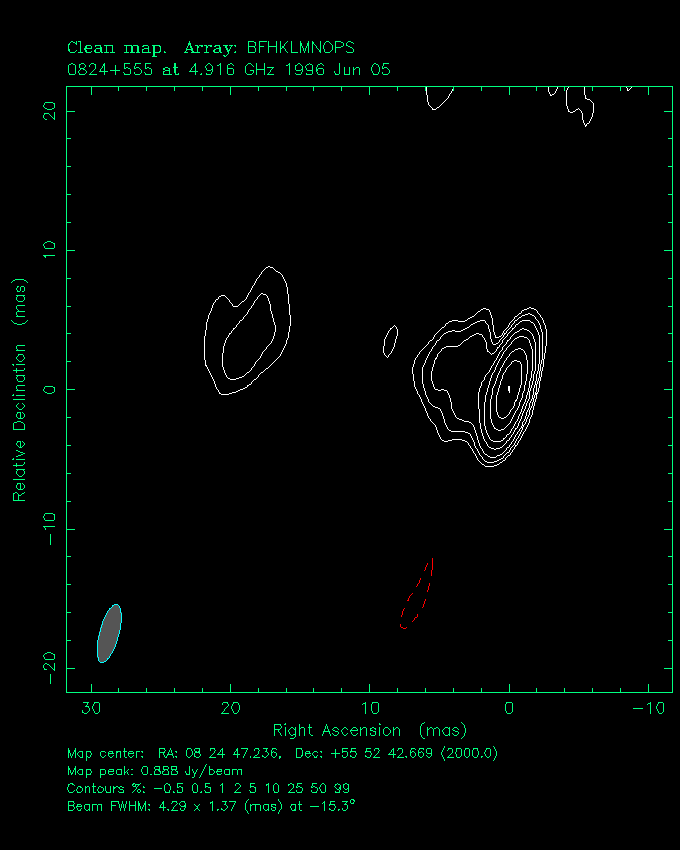

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

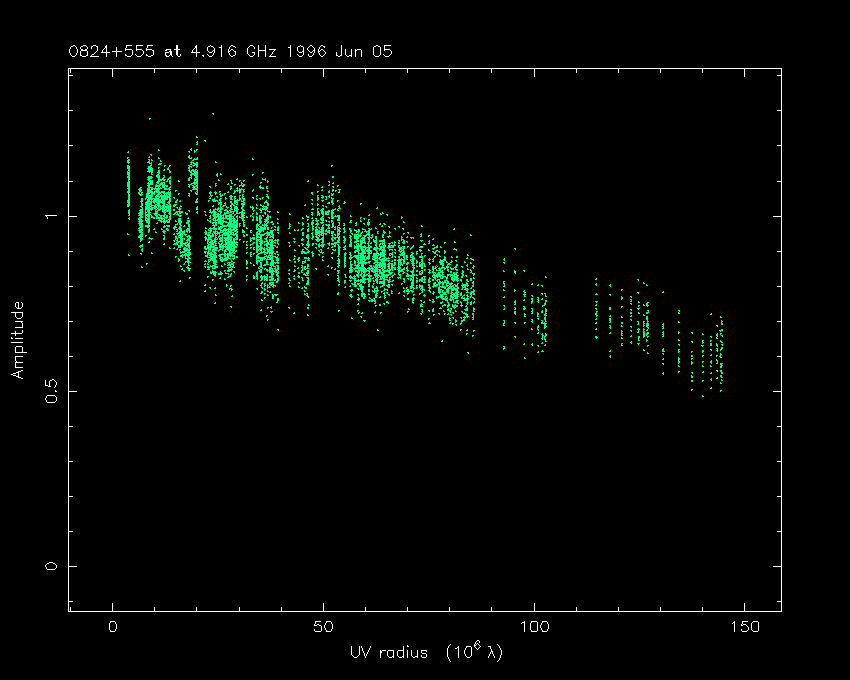

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.944 0.0 0.1 0.6 ± 0.1 < 0.7 105
0.154 2.8 0.5 4.6 ± 0.6 < 0.9 58
0.070 18.8 3.6 < 5.0 < 4.4 58

Other VLBI references

5 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
1.6 GHz: VLBI image is published in the Caltech-Jodrell Bank Flat Spectrum Survey (CJF, Taylor et al. 1996, ApJS 107, 37)
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001
