J0824+3916

J0824+3916

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
0821+394 8 h 24 m 55.4838 s + 39 ° 16 ´ 41.904 " 1.0 Jy quasar 1.216

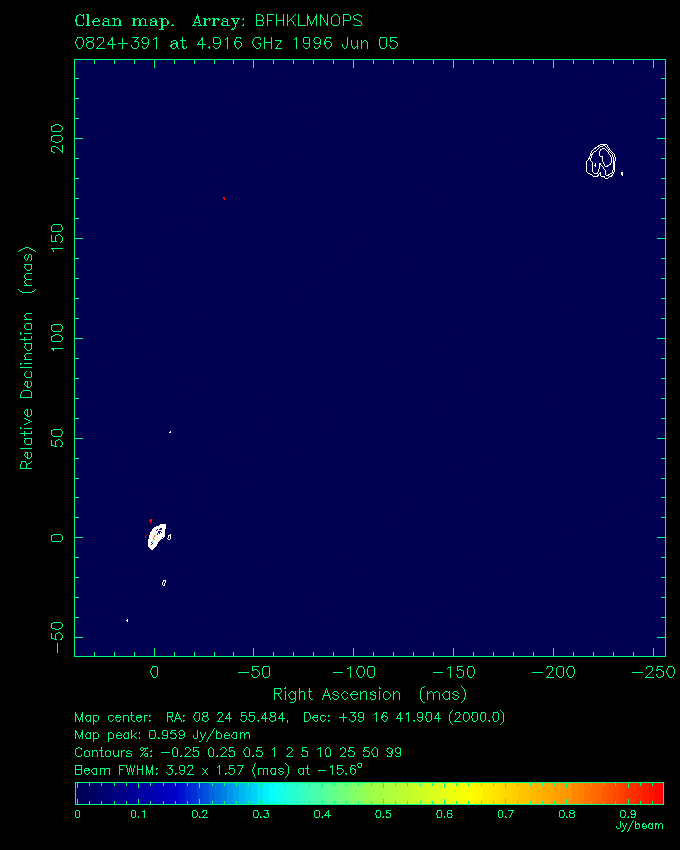

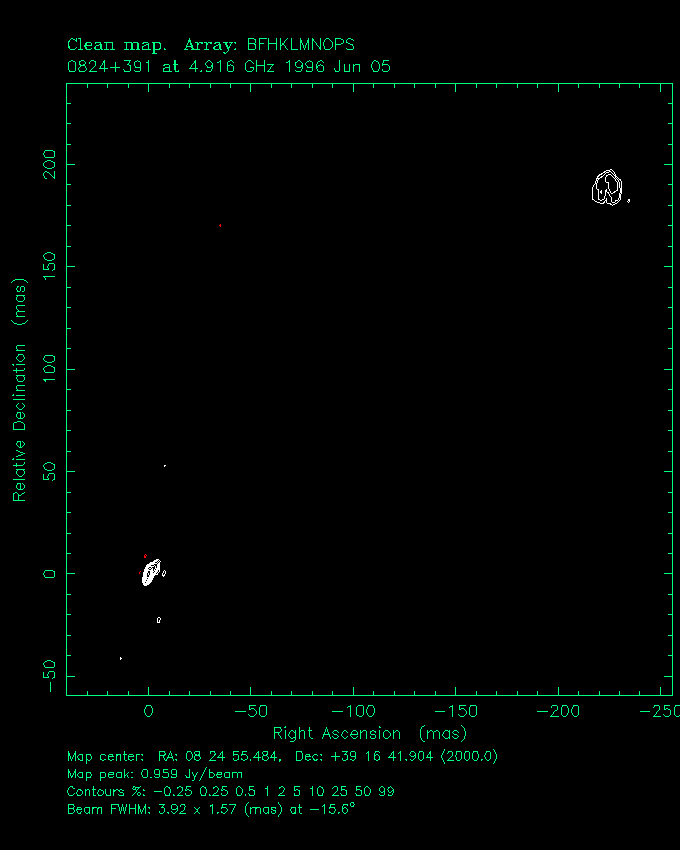

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

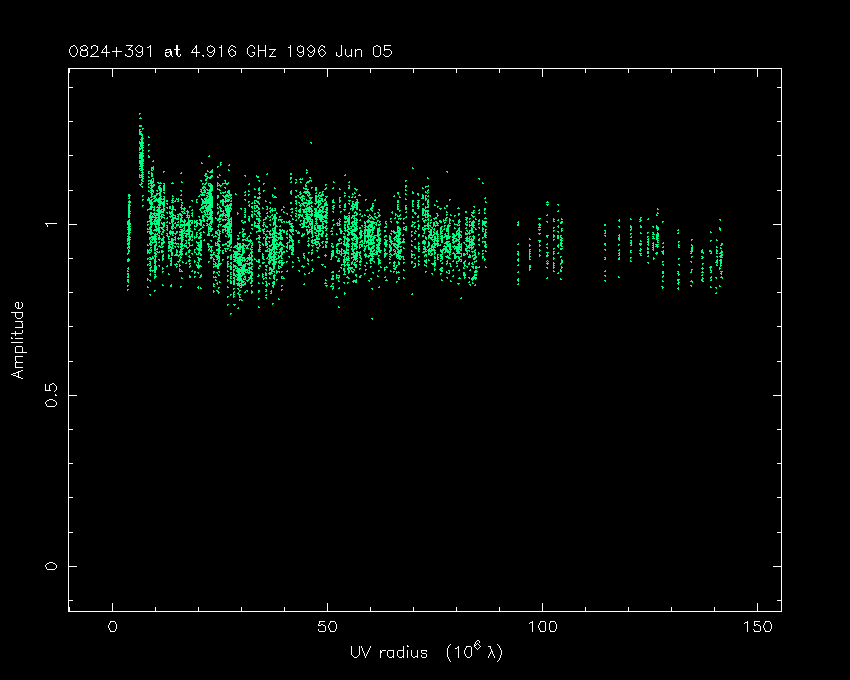

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
0.961 0.0 0.0 < 0.3 < 0.5 ...
0.085 -2.7 2.7 2.2 ± 0.5 < 0.7 128
0.220 -225.3 189.3 10.5 ± 1.2 9.1 ± 0.9 18

Notes

Images of the two widely (~0.3") separated components:
SW component contour PostScript
NE component contour PostScript

A source-specific comment is given in the VLBApls paper.

Other VLBI references
