J0738+1742

J0738+1742

other nameright ascension (J2000) declination (J2000) 5-GHz total flux density optical IDredshift
0735+178 7 h 38 m 7.3937 s + 17 ° 42 ´ 18.999 " 2.2 Jy BL Lac >0.424

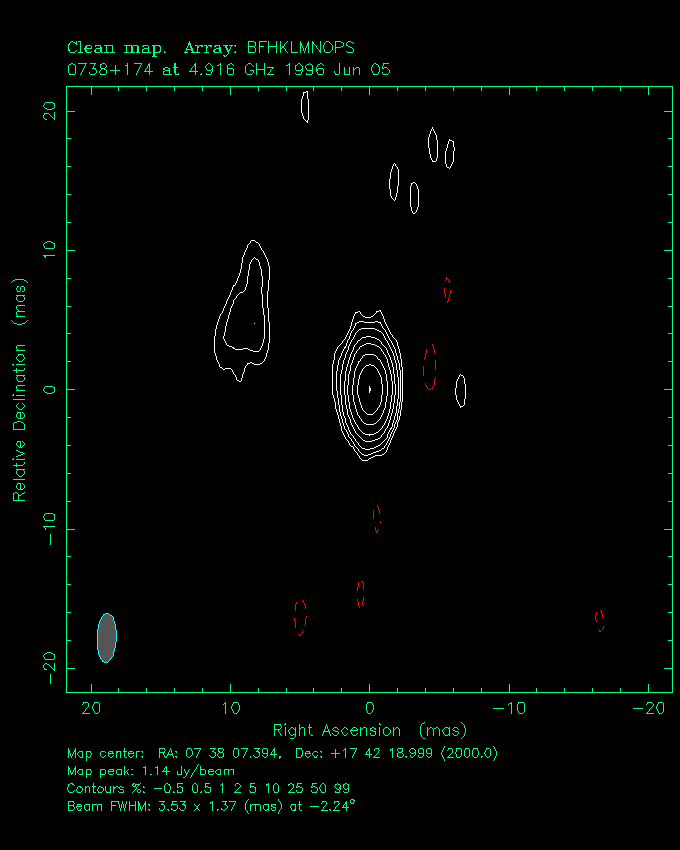

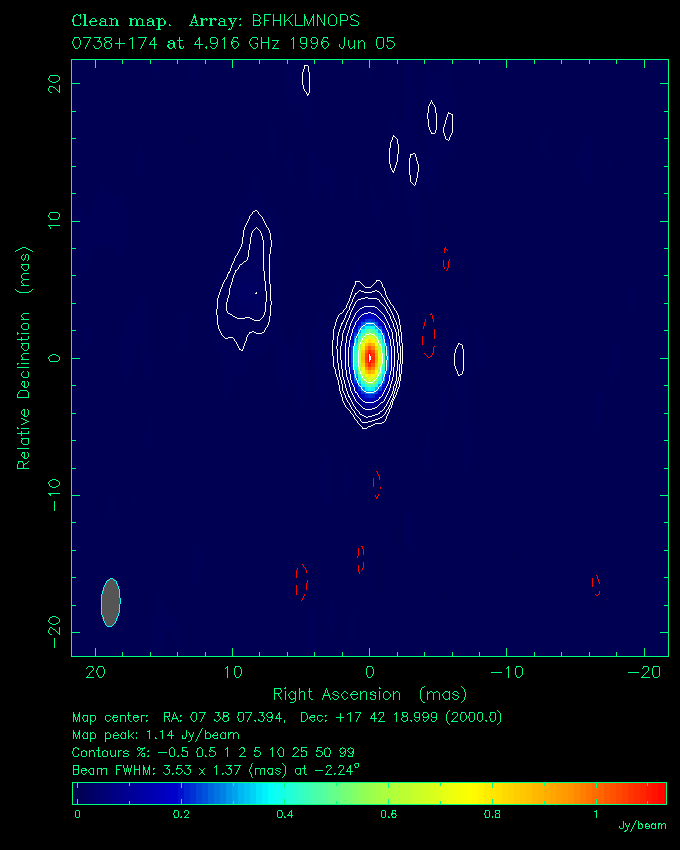

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

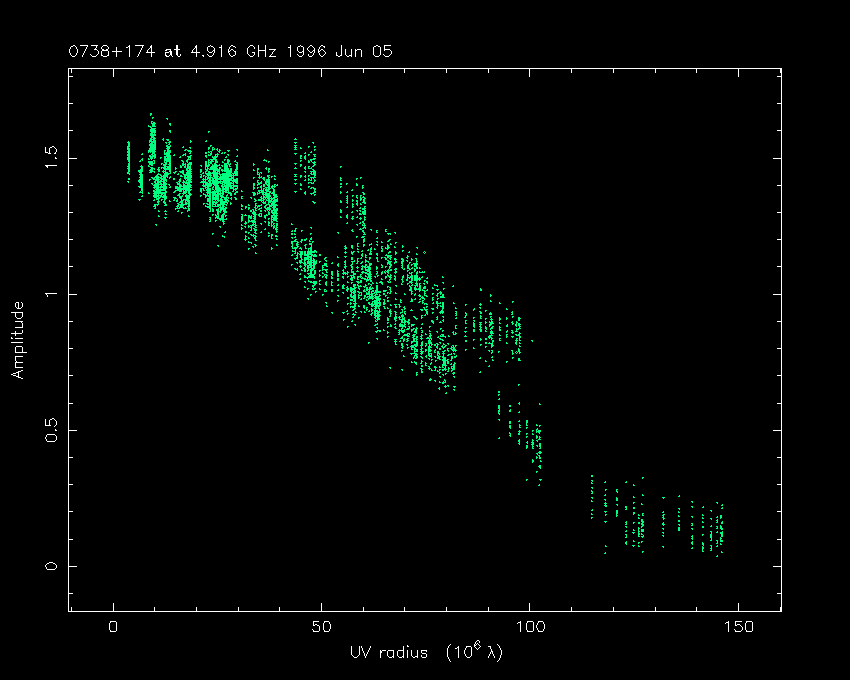

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)
1.480 0.0 0.0 1.2 ± 0.1 0.6 ± 0.2 61
0.099 9.0 5.4 < 7.2 < 2.1 61

Other VLBI references
