J0336+3218

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

NRAO 140 3 h 36 m 30.1076 s + 32 ° 18 ´ 29.342 " 2.0 Jy quasar 1.259

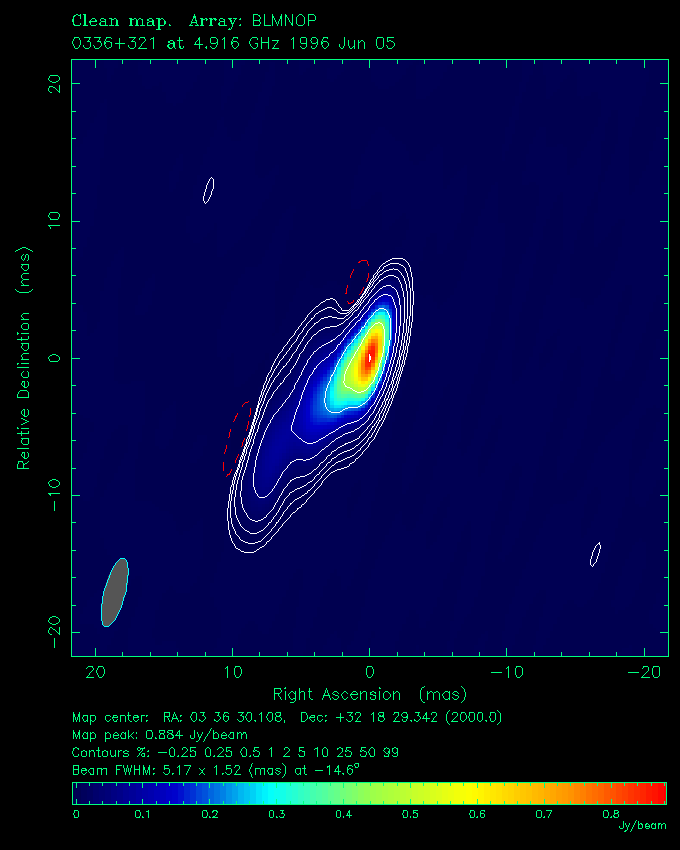

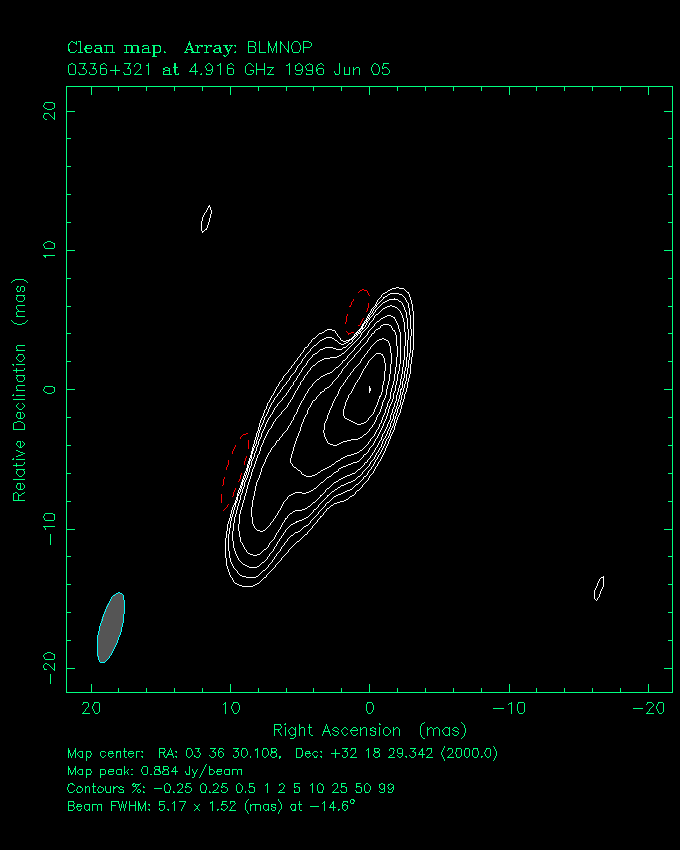

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

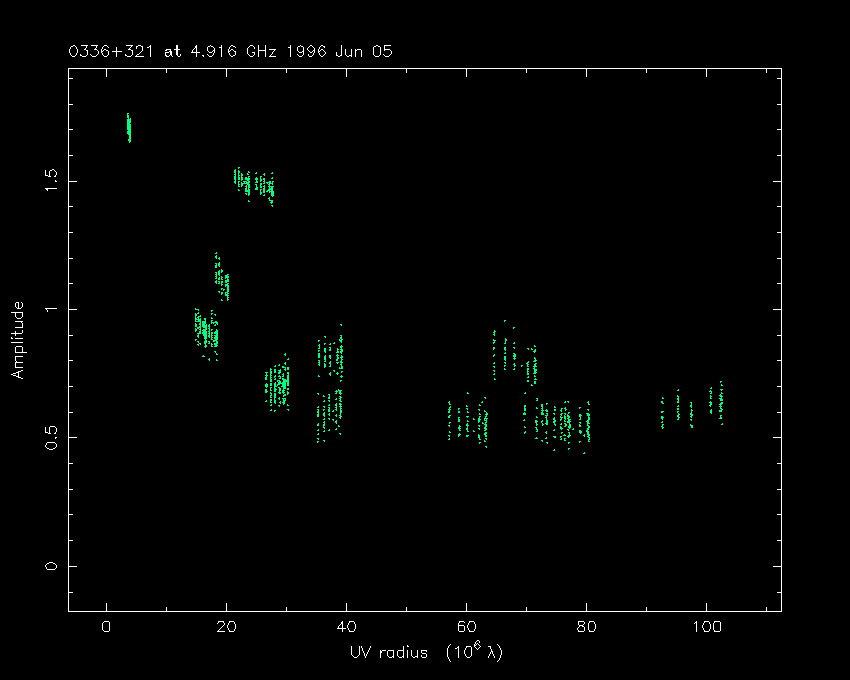

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.601 -0.1 -0.1 < 0.9 < 0.4 ...
0.810 1.2 -0.7 4.9 ± 0.4 < 1.0 138
0.136 3.9 -2.9 5.5 ± 0.8 1.4 ± 0.3 178
0.194 6.2 -5.4 8.0 ± 0.9 1.4 ± 0.5 153

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001

other name	right ascension (J2000)	declination (J2000)	5-GHz total flux density	optical ID	redshift
NRAO 140	3 h 36 m 30.1076 s	+ 32 ° 18 ´ 29.342 "	2.0 Jy	quasar	1.259

flux density (Jy)	EW position (mas)	NS position (mas)	major axis (mas)	minor axis (mas)	position angle (°)
0.601	-0.1	-0.1	< 0.9	< 0.4	...
0.810	1.2	-0.7	4.9 ± 0.4	< 1.0	138
0.136	3.9	-2.9	5.5 ± 0.8	1.4 ± 0.3	178
0.194	6.2	-5.4	8.0 ± 0.9	1.4 ± 0.5	153
