J0240-2309

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

0237-233 2 h 40 m 8.1745 s -23 ° 9 ´ 15.730 " 3.6 Jy quasar 2.225

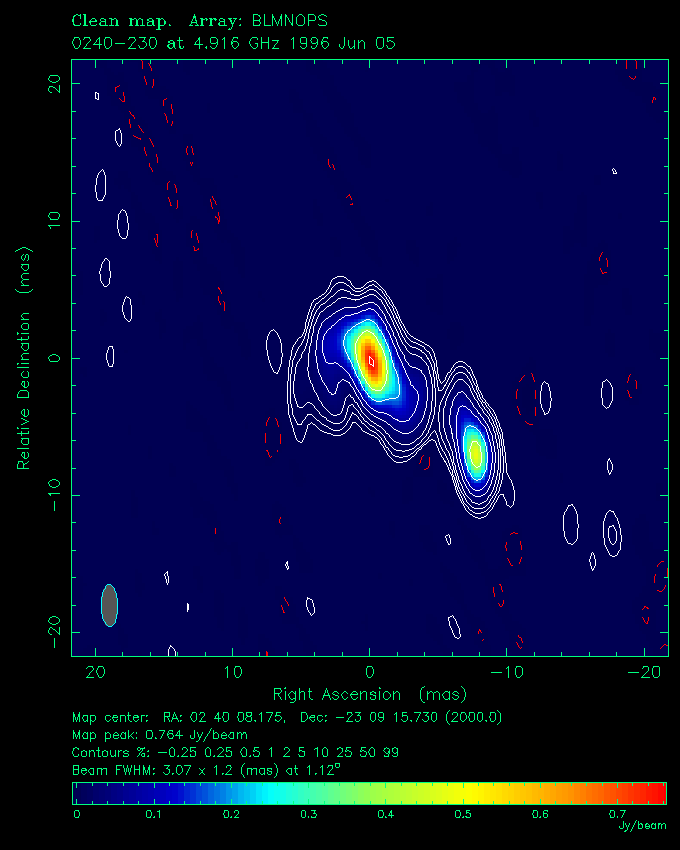

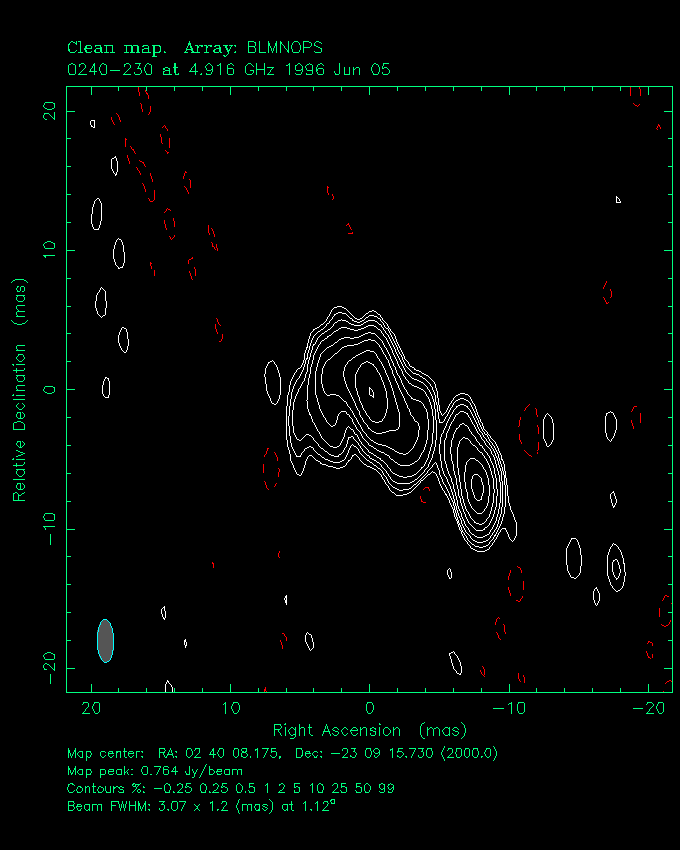

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

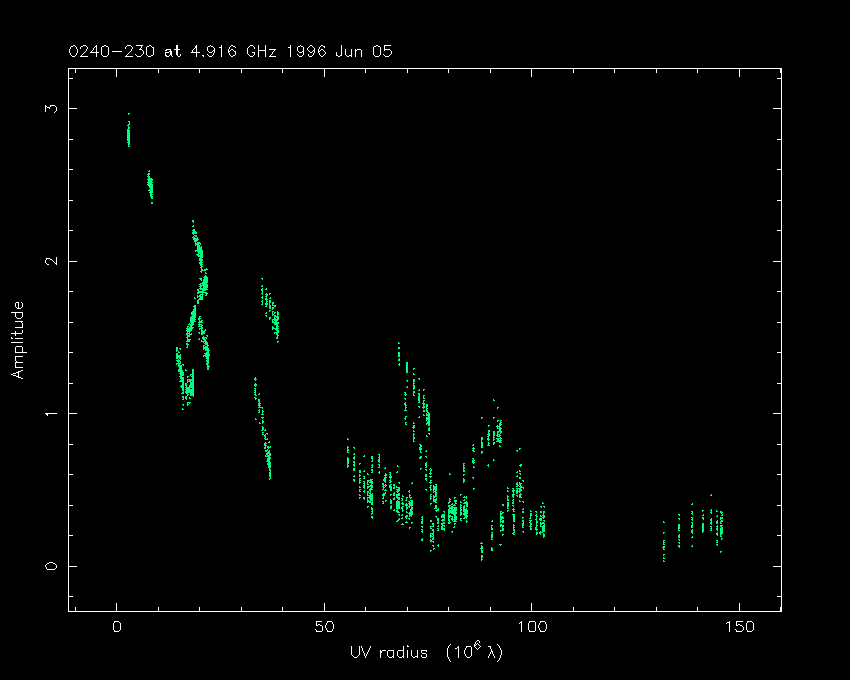

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

2.116 -0.2 -0.4 4.2 ± 0.1 1.4 ± 0.1 36
0.596 -7.8 -7.0 1.3 ± 0.2 < 0.6 41
0.134 3.3 -1.1 4.0 ± 0.7 0.9 ± 0.6 162
0.205 -5.7 -3.5 5.7 ± 0.7 1.6 ± 0.6 41

Other VLBI references

2.3 and/or 8.4 GHz: VLBI images are available in the USNO Radio Reference Frame Image Database (RRFID, Fey & Charlot 2000, ApJS 128, 17)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001
