J0057+3021

other name right ascension (J2000) declination (J2000) 5-GHz total flux density optical ID redshift

NGC 315 0 h 57 m 48.884 s * + 30 ° 21 ´ 8.81 " 0.9 Jy galaxy 0.017

* = the position has been determined to an accuracy of 10 mas from the VLBApls data

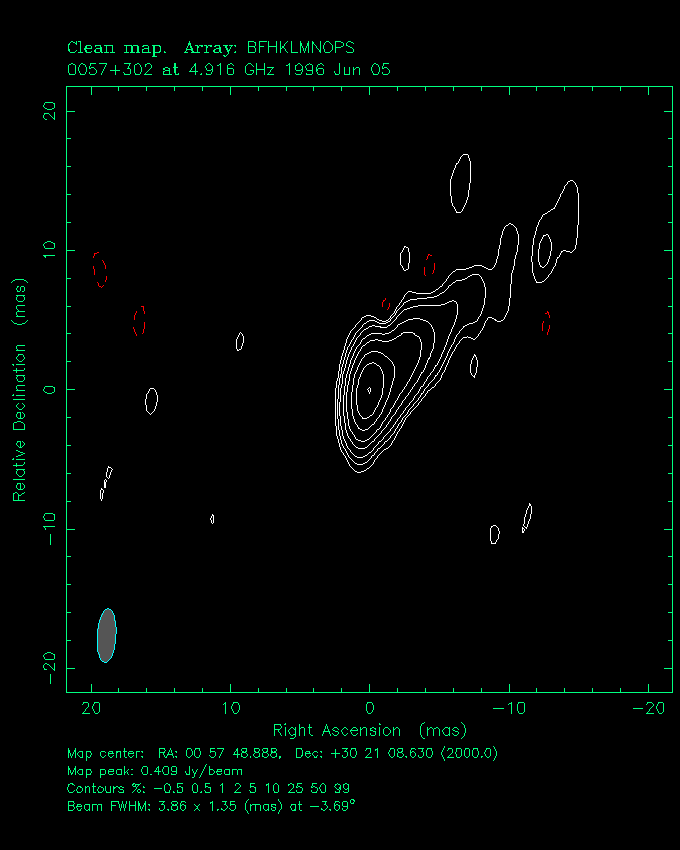

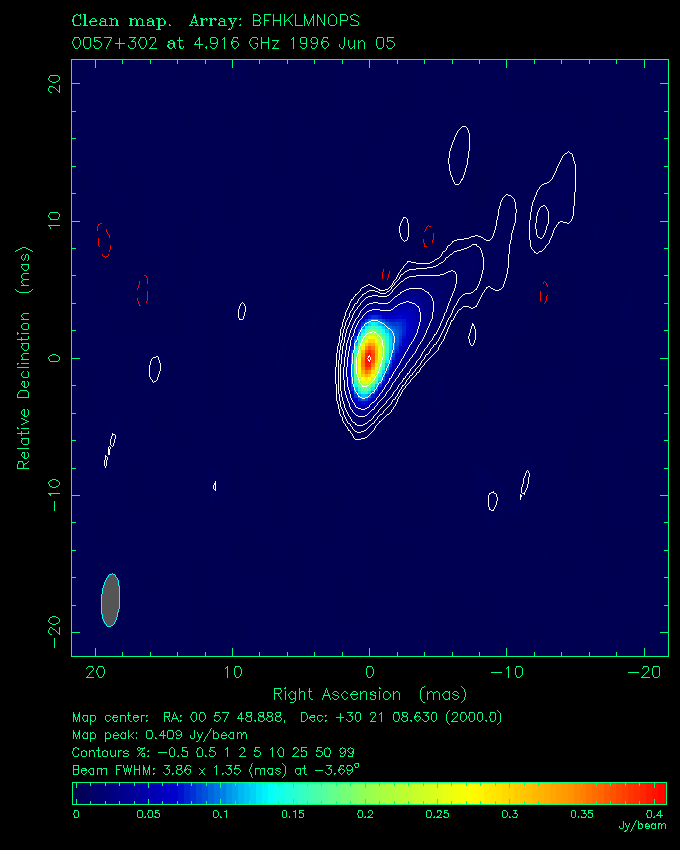

VLBApls image at 5 GHz
color gif | contour gif | contour PostScript

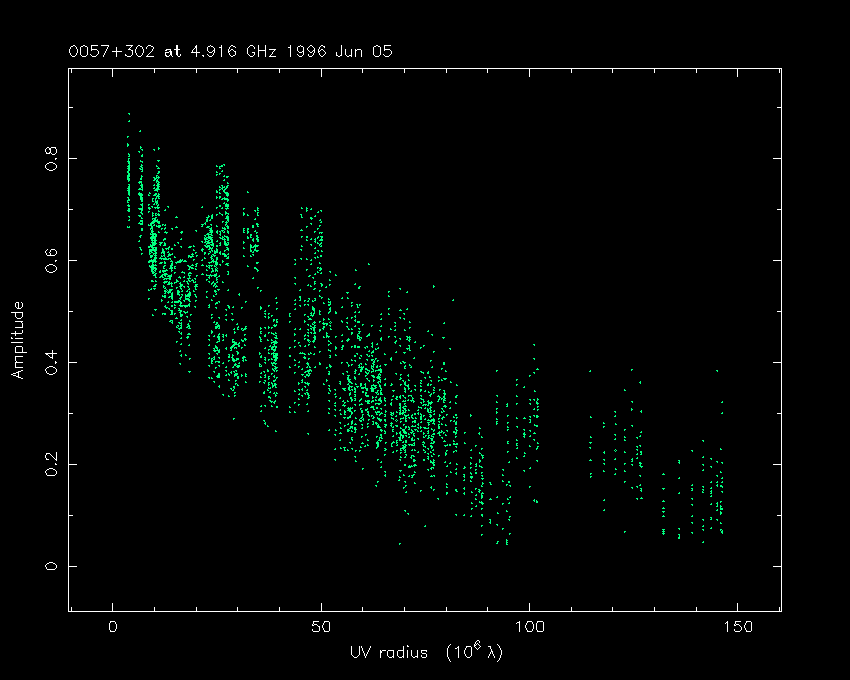

Correlated flux density (Jy) vs. projected baseline length plot
gif | PostScript

Gaussian source model component parameters

flux density (Jy) EW position (mas) NS position (mas) major axis (mas) minor axis (mas) position angle (°)

0.150 0.3 0.0 < 1.6 < 0.7 ...
0.347 -0.1 0.0 2.0 ± 0.3 < 0.9 134
0.208 -2.0 1.5 4.9 ± 0.6 < 1.3 134
0.038 -9.2 8.0 12.8 2.0 131

Other VLBI references

5 GHz: see Gurvits et al. 1999 (A&A 342, 378) for references to other VLBI image(s) published in the literature
15 GHz: multiple epoch VLBI images are available in the VLBA 2-cm survey (Kellermann et al. 1998, AJ 115, 1295)

VLBApls reference: Fomalont et al. (2000), ApJS 131, 95-183
VLBApls home page
Last modified: 19 Jan 2001
